  6. Variable Frequency Drive, 1.5HP, 400-480V, Altivar

This item is Discontinued.

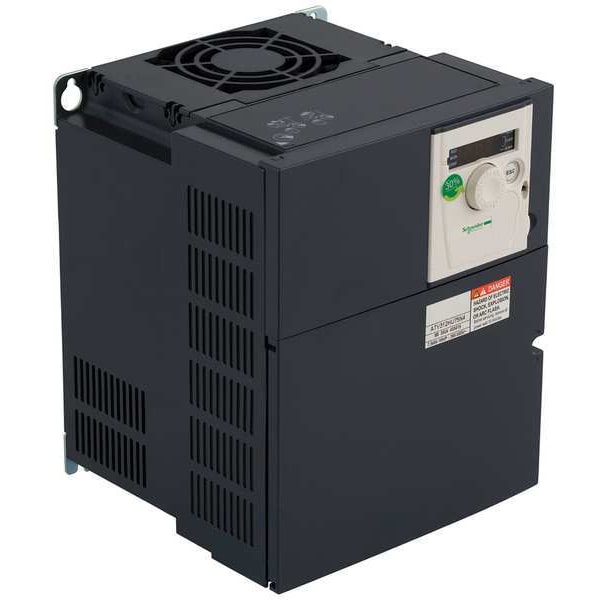

Schneider Electric Variable Frequency Drive, 1.5HP, 400-480V, Altivar ATV312HU11N4

Variable Frequency Drive, 1.5HP, 400-480V, Altivar (Discontinued)

  • Mfr # ATV312HU11N4
  • Zoro # G0859537
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ATV312HU11N4
Zoro #
G0859537
UPC #
785901822943
Country of Origin
Indonesia

Dimensions

Height
12.97 in
Width
9.65 in
Depth
7.56 in
Overall Height
5 5/8 in
Overall Width
4 1/4 in
Overall Depth
6 in

Details

Item
Variable Speed Drive
Max. HP
1.5 hp
Input Voltage
380 to 500V AC
Output Voltage
323 to 550V AC
Input Phase AC
Three
Enclosure
Open
Max. Output Amps
3 A
Output Phase AC
Three
With Bypass / No Bypass
No Bypass
With Line Contactor / No Line Contactor
No Line Contactor
Standards
DNV, NOM, CSA, UL, GOST, C-Tick
Output Frequency Range
0 to 500 Hz
Display Type
LED, 7-Segment
Torque @ 1 Hz
120%
Start/Stop Control
Programmable
Control Method
Keypad or Remote Keypad or Modbus
Digital Readout
Drive Voltage
Adjustable Deceleration Time
0.1 to 999.9 sec
Dynamic Braking
Internal Switch/External Resistor
Input Frequency
50/60 Hz
Starting Torque
170% to 200%
Key Pad Lockout
Yes
Protection
Input Phase Breaks: Drive, Line Supply Overvoltage and Undervoltage Safety Circuits: Drive, Line Supply Phase Loss Safety Function for Three Phases Supply: Drive, Motor Phase Breaks: Drive, Overcurrent Between Output Phases and Earth (on Power Up Only): Drive, Overheating Protection: Drive, Short-Circuit Between Motor Phases: Drive, Thermal Protection: Motor
Displays
LED, (4) 7-Segment Display
Accepts Input Control Signal
Yes
Control Type
Keypad, Modbus, Remote Keypad
Adjustable Acceleration Time
0.1 to 999.9 sec
For Use With
3-Phase Inverter Duty Motor
Application
Simple Machine
Maximum Output Power
1 1/2 hp
Maximum Output Current
3 A

Description

Variable Speed Drive, Input Voltage 380 to 500V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 1 1/2 hp, Maximum Output Current 3 A, Output Voltage 323 to 550V AC, Output Phase AC Three, Output Frequency Range 0 to 500 Hz
