  11. Variable Frequency Drive, 20 HP, 22A

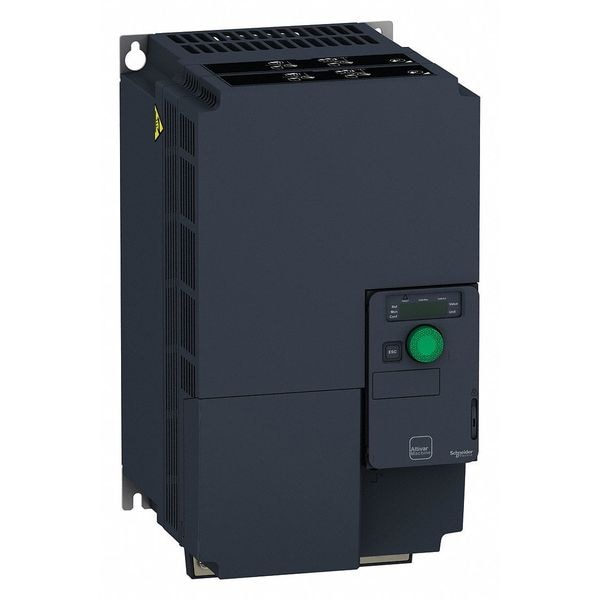

Schneider Electric Variable Frequency Drive, 20 HP, 22A ATV320D15S6C - main

Variable Frequency Drive, 20 HP, 22A

  • Mfr # ATV320D15S6C

  • Zoro # G5932698

product price: $2,831.99
/ea
Free Shipping & Returns

Key Features

Digital Readout
Output Frequency, Output Current, Output Voltage
With Line Contactor / No Line Contactor
No Line Contactor
With Bypass / No Bypass
No Bypass
Adjustable Deceleration Time
0 to 6,000 sec
Torque @ 1 Hz
1.5
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV320D15S6C
Zoro #
G5932698
UPC #
785901723400
Country of Origin
Indonesia

Dimensions

Width
7.08 in
Height
12.99 in
Depth
7.48 in
Overall Height
13 in
Overall Width
7 in
Overall Depth
7 7/8 in

Details

Digital Readout
Output Frequency, Output Current, Output Voltage
With Line Contactor / No Line Contactor
No Line Contactor
With Bypass / No Bypass
No Bypass
Adjustable Deceleration Time
0 to 6,000 sec
Torque @ 1 Hz
1.5
Control Method
Keypad, Remote, Terminal, Network
For Use With
three-phase Asynchronous, Synchronous Motors
Item
Variable Speed Drive
Input Frequency
50/60 Hz
Input Voltage
600V AC
Display Type
LED
Max. Output Amps
22 A
Accepts Input Control Signal
0 to 10V DC, 0 to 20mA Adjustable, Bipolar -10 to 10V DC
Key Pad Lockout
Yes
Displays
LED
Output Phase AC
Three
Max. HP
20 hp
Output Frequency Range
0.1 to 599 Hz
Input Phase AC
Three
Output Voltage
500V AC
Adjustable Acceleration Time
0 to 6,000 sec
Standards
EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 508C, UL 61800-5-1, CSA C22.2 No 274
Protection
Input Phase Breaks Drive, Overcurrent Between Output Phases And Earth Drive, Overheating Protection Drive, Short-Circuit Between Motor Phases Drive, Thermal Protection Drive
Control Type
Keypad, Remote, Terminal, Network
Dynamic Braking
No
Start/Stop Control
Programmable
Enclosure
Open
Starting Torque
1.5
Brake Chopper Included
Yes
Number of Outputs
(1) Analog; (3) Discrete
Output Type
Analog, Discrete
Series
Altivar 320
Number of Inputs
(3) Analog; (7) Discrete
Ethernet Port Included
No
Enclosure Rating
NEMA 1
Maximum Output Current
22 A
Output Voltage Range
200V AC to 240V AC
Torque Application
Constant Torque, Variable Torque
Color
Black
Maximum Output Power
20 hp
Application
Complex Machines
Style
Compact
Input Voltage Range
323 to 550V AC
Input Type
Analog, Discrete

Description

Variable Speed Drive, Input Voltage 600V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 20 hp, Maximum Output Current 22 A, Output Voltage 500V AC, Output Phase AC Three, Output Frequency Range 0.1 to 599 Hz, Enclosure Rating NEMA 1
