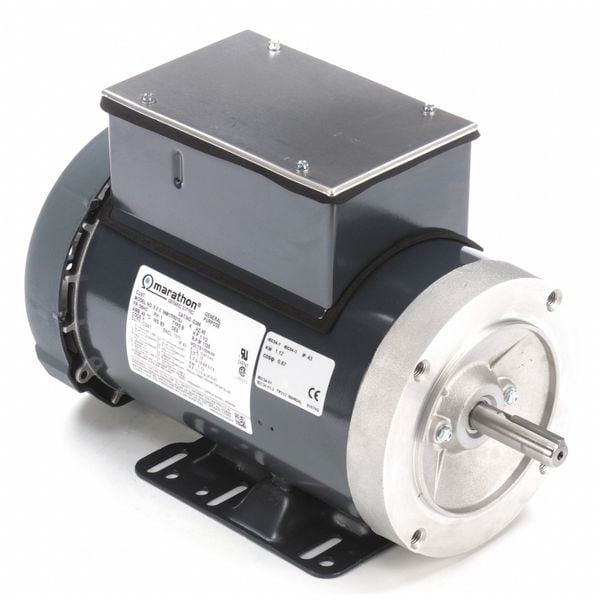

Motor, 1.5 HP, 1725 RPM, 115/208-230V, 56HC

  • Mfr # 056B17F5310
  • Zoro # G5744207
product price:
$
647.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
1 1/2
Nameplate RPM
1,725
Frame
56HC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
056B17F5310
Zoro #
G5744207
UPC #
-
Country of Origin
Multiple

Dimensions

Shaft Dia.
5/8 in
Shaft Length
2 1/8 in
Height
9 in
Bolt Circle Dia.
5 7/8 in
Overall Length
13 13/16 in
Body Dia.
7.4 in
Length Less Shaft
11 15/16 in
Body Diameter
7.4 in
Frame Size
56HC
Shaft Diameter
5/8 in
Bolt Circle Diameter
5 7/8 in
Wire Rope Length
13 13/16 in
Length
13 13/16 in

Details

Item
Pressure Washer Motor
Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
1 1/2
Nameplate RPM
1,725
Frame
56HC
Motor Shaft Rotation
CW/CCW
Voltage
115V AC, 208V AC to 230V AC
RPM Range
1,701-1,800
Motor Service Factor
1.15
Phase
Single
Motor Application
Pressure Washer
Full Load Amps
13.6/7.5-6.8 A
Motor Thermal Protection
Manual
Motor Bearings
Ball
Hz
60 Hz
Ins. Class
B
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 208V AC to 230V AC
Motor Mounting Type
Face/Base
Ambient Temperature
40 Degrees C
Standards
CE Mark, CSA Certified, UL Recognized
Duty Cycle
Continuous
Max. Ambient Temp.
40 Degrees C
Usable @ 208V
Usable at 208V
NEMA Design
None
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Nominal Efficiency
81.5 %
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Conduit Box Location
Exterior
No. of Speeds
1
Weight
45 lb
Conduit Box Position
F3
Application
Pump
Number of Wires
9
Motor Enclosure Type
Totally Enclosed Fan Cooled
Full Load Current @ 60 Hz
13.6/7.5-6.8 A
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel
Shaft Design
Keyed
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1.15
Sub Application
Pressure Washer
Mounting Position
Horizontal
Product Type
Pump Motor
Insulation Class
B
Number of Speeds
1
Bearing Type
Ball

Description

Pressure Washer Motor, Body Dia. 7.4 in, Bolt Circle Dia. 5 7/8 in, Conduit Box Location Exterior, Conduit Box Position F3, Duty Cycle Continuous, Frame 56HC, Hz 60 Hz, Full Load Amps 13.6/7.5-6.8, Height 9 in, HP 1 1/2, Ins. Class B, Length Less Shaft 11 15/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pressure Washer, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Frame Material Steel
