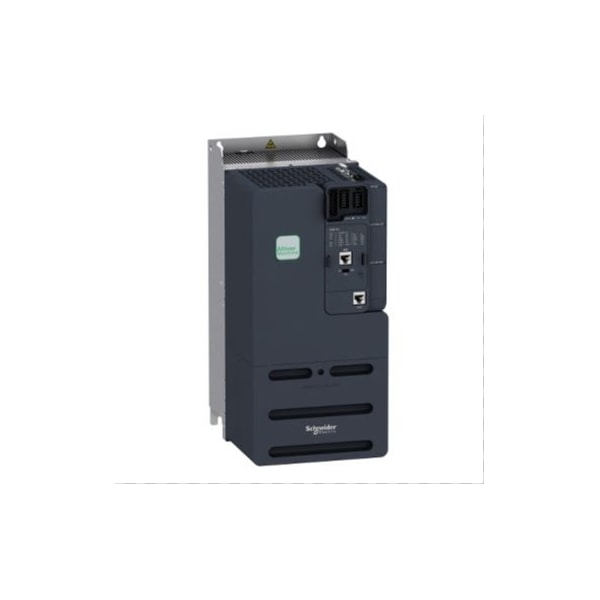

Schneider Electric Variable Frequency Drive, 25 hp, 480V AC ATV340D18N4 - main

Variable Frequency Drive, 25 hp, 480V AC

  • Mfr # ATV340D18N4

  • Zoro # G0199379

product price: $3,652.99
/ea
Free Shipping & Returns

Key Features

Display Type
None
Output Voltage
480V AC
With Line Contactor / No Line Contactor
With Line Contactor
Input Frequency
50/60 Hz
Input Voltage
480V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV340D18N4
Zoro #
G0199379
UPC #
785901710769
Country of Origin
Indonesia

Dimensions

Width
7.09 in
Height
15.16 in
Depth
9.8 in
Overall Depth
9 3/4 in
Overall Width
7 1/8 in
Overall Height
5 1/8 in

Details

Display Type
None
Output Voltage
480V AC
With Line Contactor / No Line Contactor
With Line Contactor
Input Frequency
50/60 Hz
Input Voltage
480V AC
For Use With
Three-phase supply voltage: 380...480 V 50/60 Hz
Item
Variable Speed Drive
Digital Readout
No
Max. Output Amps
50.6 A, 59 A, 62.1 A, 70 A
Standards
EN/IEC 61800-3, Environment 1 Category C2 EN/IEC 61800-3, Environment 2 Category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 618000-5-1
Dynamic Braking
No
Protection
Break on the control circuit, DC Bus overvoltage, Exceeding limit speed, Input supply loss, Line supply overvoltage, Line supply undervoltage, Motor phase loss, Output overcurrent between motor phase and earth, Output overcurrent between motor phases, Overcurrent, Overheating, Safe torque off, Short-circuit between motor phase and earth, Short-circuit between motor phases, Thermal protection
Input Phase AC
Three
Control Method
Constant Torque Standard, Optimized Torque Mode, Variable Torque Standard
Max. HP
25 hp, 30 hp
Enclosure
Open
Enclosure Rating
NEMA 1
Adjustable Acceleration Time
0.01 to 9,999 sec
Series
Altivar Machine ATV340
Maximum Output Current
46 A
Output Phase AC
Three
Number of Inputs
(2) Analog; (1) Discrete; (3) Relay
Style
Modular
Output Voltage Range
323V AC to 528V AC
Application
Industrial Process and Utilities
Number of Outputs
(3) Analog; (8) Discrete
Key Pad Lockout
None
Torque Application
Constant Torque, Variable Torque
Color
Black
Output Type
Analog, Discrete
Input Voltage Range
380 to 480V AC
Input Type
Analog, Discrete
Brake Chopper Included
Yes
Maximum Output Power
25 hp
Displays
None
Output Frequency Range
0.1 to 599 Hz
Adjustable Deceleration Time
0.01 to 9,999 sec
Start/Stop Control
Programmable
With Bypass / No Bypass
No Bypass
Ethernet Port Included
No

Description

Variable Speed Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 25 hp, Maximum Output Current 46 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.1 to 599 Hz, Enclosure Rating NEMA 1
