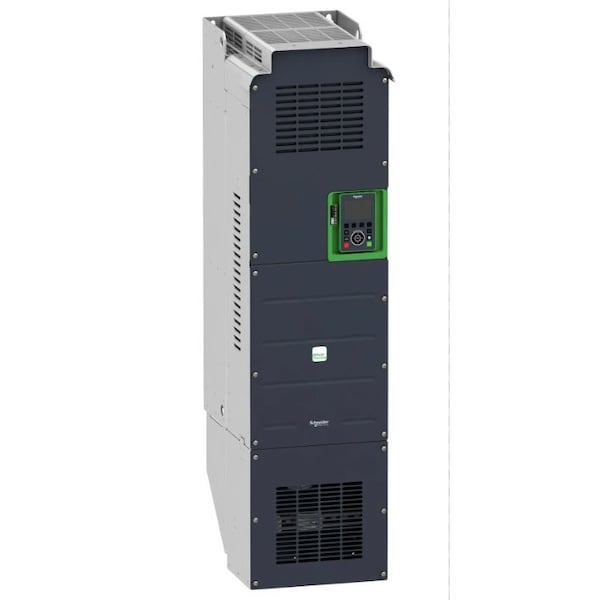

Schneider Electric Variable Frequency Drive, 250 hp, 480V AC ATV630C16N4 - main

Variable Frequency Drive, 250 hp, 480V AC

  • Mfr # ATV630C16N4

  • Zoro # G3547102

product price: $22,787.99
/ea
Item requires special delivery charges. A $500.00 per item surcharge will be applied.

Key Features

Height
33.54 in
Depth
15.35 in
Digital Readout
No
Input Phase AC
Three
Control Method
Constant Torque Standard, Optimized Torque Mode, Variable Torque Standard
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV630C16N4
Zoro #
G3547102
UPC #
785901712756
Country of Origin
India

Dimensions

Height
33.54 in
Depth
15.35 in
Width
12.6 in
Overall Width
12 5/8 in
Overall Height
33 5/8 in
Overall Depth
15 3/8 in

Details

Digital Readout
No
Input Phase AC
Three
Control Method
Constant Torque Standard, Optimized Torque Mode, Variable Torque Standard
Input Frequency
50/60 Hz
Dynamic Braking
No
Display Type
Graphic
With Line Contactor / No Line Contactor
With Line Contactor
Item
Variable Speed Drive
Max. HP
200 hp, 250 hp
Protection
Motor Phase Break, Overcurrent, Overheating, Overspeed, Overvoltage's, Safe Torque Off, Short-circuit Protection, Thermal Protection, Undervoltage
Max. Output Amps
332.2 A, 375 A
Output Voltage
480V AC
Standards
UL 508C, EN/IEC 61800-3, Environment 1 category C2 EN/IEC 61800-3, Environment 2 category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, IEC 13849-1
Input Voltage
480V AC
For Use With
Three-phase supply voltage: 380...480 V 50/60 Hz
Start/Stop Control
Programmable
Ethernet Port Included
Yes
Input Type
Analog, Discrete
Adjustable Deceleration Time
0.01 to 9,999 sec
Output Type
Analog, Discrete
Application
Industrial Process and Utilities
Enclosure
Totally Enclosed
Style
Compact
Color
Black
Adjustable Acceleration Time
0.01 to 9,999 sec
Input Voltage Range
380 to 480V AC
Enclosure Rating
NEMA 1
Number of Inputs
(3) Analog; (8) Discrete
Output Voltage Range
380V AC to 480V AC
With Bypass / No Bypass
No Bypass
Brake Chopper Included
No
Torque Application
Constant Torque, Variable Torque
Series
Altivar Process ATV600 Variable Speed Drives
Number of Outputs
(2) Analog; (3) Relay
Maximum Output Current
302 A
Displays
Graphic Display
Output Frequency Range
0.1 to 500 Hz
Output Phase AC
Three
Maximum Output Power
250 hp

Description

Variable Speed Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 250 hp, Maximum Output Current 302 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.1 to 500 Hz, Enclosure Rating NEMA 1
