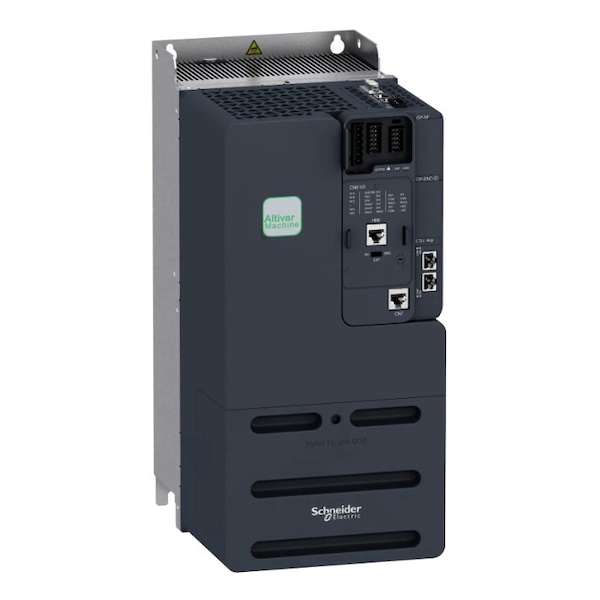

Schneider Electric Variable Frequency Drive, 30 hp, 480V AC ATV340D18N4E - main

Variable Frequency Drive, 30 hp, 480V AC

  • Mfr # ATV340D18N4E

  • Zoro # G0196597

product price: $4,297.99
/ea
Free Shipping & Returns

Key Features

Output Voltage
480V AC
Height
15.16 in
Max. HP
25 hp, 30 hp
Dynamic Braking
No
With Line Contactor / No Line Contactor
With Line Contactor
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV340D18N4E
Zoro #
G0196597
UPC #
785901743897
Country of Origin
Indonesia

Dimensions

Height
15.16 in
Width
7.09 in
Depth
9.8 in
Overall Height
5 1/8 in
Overall Depth
9 3/4 in
Overall Width
7 1/8 in

Details

Output Voltage
480V AC
Max. HP
25 hp, 30 hp
Dynamic Braking
No
With Line Contactor / No Line Contactor
With Line Contactor
Protection
Break on the control circuit, DC Bus overvoltage, Exceeding limit speed, Input supply loss, Line supply overvoltage, Line supply undervoltage, Motor phase loss, Output overcurrent between motor phase and earth, Output overcurrent between motor phases, Overcurrent, Overheating, Safe torque off, Short-circuit between motor phase and earth, Short-circuit between motor phases, Thermal protection
Standards
EN/IEC 61800-3, Environment 1 Category C2 EN/IEC 61800-3, Environment 2 Category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 618000-5-1
Digital Readout
No
Input Voltage
480V AC
For Use With
Three-phase supply voltage: 380...480 V 50/60 Hz
Item
Variable Speed Drive
Max. Output Amps
50.6 A, 59 A, 62.1 A, 70 A
Control Method
Variable Torque Standard, Optimized Torque Mode, Constant Torque Standard
Input Frequency
50/60 Hz
Display Type
None
Input Phase AC
Three
Output Voltage Range
323V AC to 528V AC
Number of Outputs
(3) Analog; (8) Discrete
With Bypass / No Bypass
No Bypass
Maximum Output Power
30 hp
Application
Industrial Process and Utilities
Number of Inputs
(2) Analog; (1) Discrete; (3) Relay
Enclosure
Open
Ethernet Port Included
Yes
Key Pad Lockout
None
Torque Application
Constant Torque, Variable Torque
Brake Chopper Included
Yes
Style
Ethernet
Displays
None
Maximum Output Current
46 A
Series
Altivar Machine ATV340
Enclosure Rating
NEMA 1
Adjustable Deceleration Time
0.01 to 9,999 sec
Output Phase AC
Three
Color
Black
Start/Stop Control
Programmable
Output Type
Analog, Discrete
Adjustable Acceleration Time
0.01 to 9,999 sec
Input Type
Analog, Discrete
Input Voltage Range
380 to 480V AC
Output Frequency Range
0.1 to 599 Hz

Description

Variable Speed Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 30 hp, Maximum Output Current 46 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.1 to 599 Hz, Enclosure Rating NEMA 1
