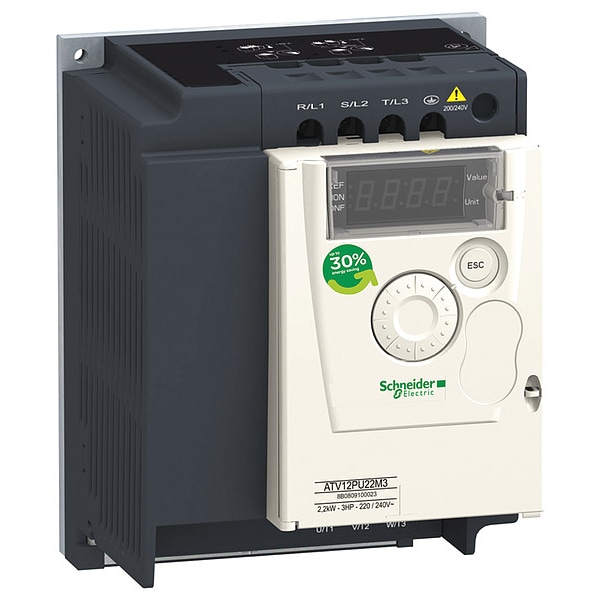

Schneider Electric Variable Frequency Drive, 3hp, 200 to 240V ATV12PU22M3 - main

Variable Frequency Drive, 3hp, 200 to 240V

  • Mfr # ATV12PU22M3

  • Zoro # G3615237

product price: $469.99
/ea
Free Shipping & Returns

Key Features

For Use With
Motor, Three-phase supply voltage: 200¿240 V 50/60 Hz
Depth
3.87 in
Width
4.13 in
Height
5.63 in
Input Voltage
200 to 240V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV12PU22M3
Zoro #
G3615237
UPC #
785901725329
Country of Origin
Indonesia

Dimensions

Depth
3.87 in
Width
4.13 in
Height
5.63 in
Overall Height
5 5/8 in
Overall Depth
3 7/8 in
Overall Width
4 1/8 in

Details

Item
Variable Speed Drive
For Use With
Motor, Three-phase supply voltage: 200¿240 V 50/60 Hz
Input Voltage
200 to 240V AC
Application
Commercial Equipment Mixer, Commercial Equipment Other Application, Textile Ironing
Input Phase AC
Three
Dynamic Braking
No
Starting Torque
150% to 170%
Input Frequency
50/60 Hz
Max. HP
3 hp
With Line Contactor / No Line Contactor
No Line Contactor
Adjustable Deceleration Time
0 to 999.9 sec
Control Method
Quadratic V/Hz, Volts Per Hz, Sensor less Flux Vector Control
Max. Output Amps
15 A
Enclosure
Open
Output Voltage
200 to 240V AC
Output Phase AC
Three
Standards
UL, C-tick, NOM, GOST, CSA
Displays
LED
Display Type
LED
Start/Stop Control
Programmable
Adjustable Acceleration Time
0 to 999.9 sec
Protection
Against Input Phase Loss in Three-Phase, Line Supply Overvoltage, Line Supply Undervoltage, Overcurrent Between Output Phases and Earth, Overheating Protection, Short-Circuit Between Motor phases, Thermal Motor Protection via the Drive by Continuous Calculation of I²t
With Bypass / No Bypass
No Bypass
Output Frequency Range
0.5 to 400 Hz
Digital Readout
Yes
Input Voltage Range
170 to 264V AC
Number of Inputs
(2) Analog; (4) Discrete
Input Type
Analog, Discrete
Ethernet Port Included
No
Enclosure Rating
NEMA 1
Style
Base Plate
Maximum Output Power
3 hp
Color
Black
Series
Altivar 12
Maximum Output Current
10 A
Torque Application
Constant Torque, Variable Torque
Number of Outputs
(1) Analog; (2) Discrete
Output Voltage Range
200V AC to 240V AC
Brake Chopper Included
No
Output Type
Analog, Discrete

Description

Variable Speed Drive, Input Voltage 200 to 240V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 3 hp, Maximum Output Current 10 A, Output Voltage 200 to 240V AC, Output Phase AC Three, Output Frequency Range 0.5 to 400 Hz, Enclosure Rating NEMA 1
