Shop DAYTON

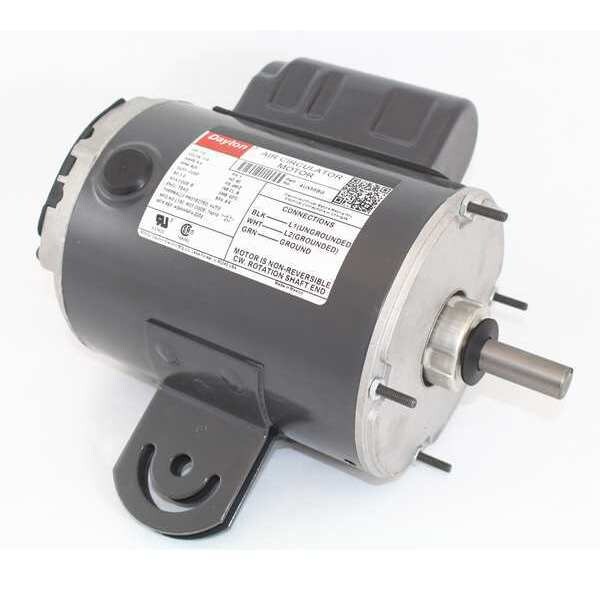

Pedestal Fan Motor, 1/2 hp

  • Mfr # 4UX59

  • Zoro # G1166505

product price:  $298.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
0-1,000
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4UX59
Zoro #
G1166505
UPC #
190735335550
Country of Origin
Multiple

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Body Dia.
5 5/8 in
Overall Length
10 in
Body Diameter
5.6 in
Shaft Diameter
5/8 in
Frame Size
48YZ

Details

Item
Pedestal Fan Motor
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
0-1,000
No. of Speeds
1
Voltage
115V AC
Motor Shaft Rotation
CW/CCW
Frame
48YZ
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Shaft Design
Keyed
Motor Application
HVAC/R
Standards
CSA Certified, UL Recognized
Motor Bearings
Ball
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Capacitor Required
Capacitor Included
Motor Service Factor
1
Motor Sub Application
Pedestal Fan
Ambient Temperature
40 Degrees C
Max. Ambient Temp.
40 Degrees C
Hz
60 Hz
Duty
Continuous
Nameplate RPM
825
Application
Air Circulators where Motor is Mounted Directly to Fan Column, Also Used on Exhaust Fans, Unit Heaters and Other Air-moving Uses
Full Load Amps
6.4 A
Motor Thermal Protection
Auto
Motor Mounting Type
Yoke
Ins. Class
B
10 Ft. Cord and Pull Chain Switch
No
Motor Mounting Position
Horizontal
Duty Cycle
Continuous
Shaft Design
Keyed
Sub Application
Pedestal Fan
Number of Speeds
1
Full Load Current @ 60 Hz
6.4 A
Bearing Type
Ball
Product Type
Pedestal Fan Motor
Drive Type
Direct Drive
Motor Enclosure Type
Totally Enclosed Air-Over
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B
Frequency
60 Hz

Description

Pedestal Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 HP, Nameplate RPM 825, No. of Speeds 1, Voltage 115V AC, 6.4 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Position Horizontal, Shaft Length 1 7/8 in, Shaft Dia. 5/8 in
