Schneider Electric

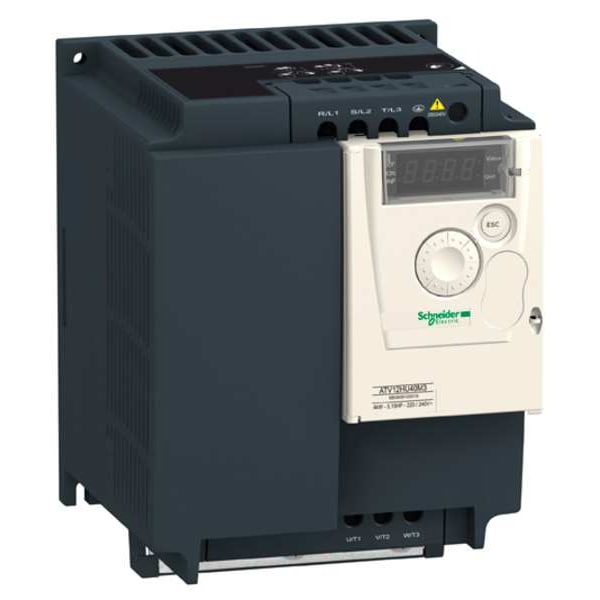

Variable Frequency Drive, 4 HP, 230VAC, Altivar

product price: $333.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Max. HP 4 hp
  • Input Voltage 200 to 240V AC
  • Output Voltage 200 to 240V AC
  • Input Phase AC Three
  • Enclosure Open
See all product information

Product Information

Dimensions

Width 5.51 in
Height 6.69 in
Depth 5.56 in
Overall Height 7 1/4 in
Overall Depth 5 1/2 in
Overall Width 5 1/2 in

Details

Item Variable Speed Drive
Max. HP 4 hp
Input Voltage 200 to 240V AC
Output Voltage 200 to 240V AC
Input Phase AC Three
Enclosure Open
Max. Output Amps 12.2 A
Output Phase AC Three
With Bypass / No Bypass No Bypass
With Line Contactor / No Line Contactor No Line Contactor
Accepts Input Control Signal Yes
For Use With 3-Phase Inverter Duty Motor
Control Type Keypad, Modbus, Remote Keypad
Control Method Keypad or Remote Keypad or Modbus
Dynamic Braking No
Torque @ 1 Hz 120%
Digital Readout Yes
Key Pad Lockout Yes
Displays LED
Adjustable Acceleration Time 0 to 999.9 sec
Protection Against Input Phase Loss in Three-Phase, Line Supply Overvoltage, Line Supply Undervoltage, Overcurrent Between Output Phases and Earth, Overheating Protection, Short-Circuit Between Motor phases, Thermal Motor Protection via the Drive by Continuous Calculation of I²t
Adjustable Deceleration Time 0 to 999.9 sec
Start/Stop Control Programmable
Standards UL, C-tick, NOM, GOST, CSA
Output Frequency Range 0.5 to 400 Hz
Display Type LED
Input Frequency 50/60 Hz
Starting Torque 150% to 170%
Input Voltage Range 200 to 240V AC
Torque Application Constant Torque, Variable Torque
Ethernet Port Included No
Color Black/Blue/Gray
Number of Inputs (2) Analog; (4) Discrete
Enclosure Rating NEMA 1
Style Heat Sink
Application Ironing Textile, Mixer Commercial Equipment, Other Application Commercial Equipment
Maximum Output Power 4 hp
Input Type Analog, Discrete
Maximum Output Current 12.2 A
Brake Chopper Included No
Output Voltage Range 170V AC to 264V AC
Number of Outputs (1) Analog; (2) Discrete
Series Altivar 12
Output Type Analog, Discrete

Description

Variable Speed Drive, Input Voltage 200 to 240V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 4 hp, Maximum Output Current 12.2 A, Output Voltage 200 to 240V AC, Output Phase AC Three, Output Frequency Range 0.5 to 400 Hz, Enclosure Rating NEMA 1
