Shop All 3.3 Inch Diameter Motors
Dayton

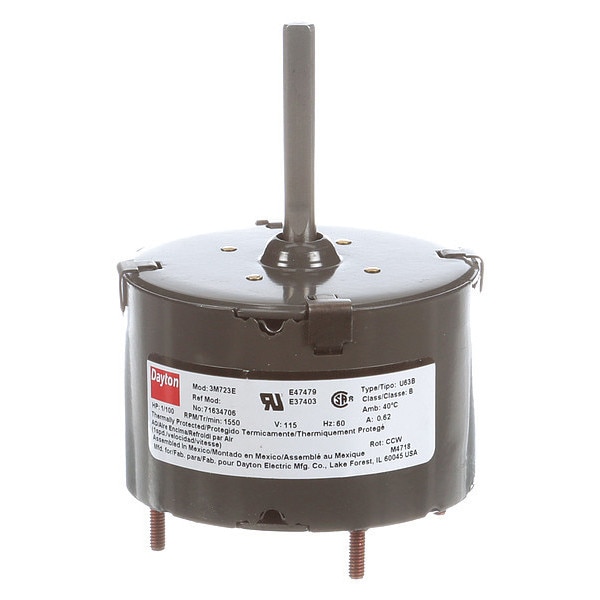

HVAC Motor, 1/100 HP, 1550 rpm, 115V, 3.3

product price: $52.95
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 115V AC
  • Nameplate RPM 1,550
  • Motor Enclosure Design Totally Enclosed Air-Over
  • Number of Speeds 1
  • HP 1/100
See all product information

Product Information

Dimensions

Cord Length 12 in
Body Dia. 3 5/16 in
Length Less Shaft 2 5/8 in
Shaft Dia. 5/16 in
Shaft Length 2 1/4 in

Details

Voltage 115V AC
Nameplate RPM 1,550
Motor Enclosure Design Totally Enclosed Air-Over
Number of Speeds 1
HP 1/100
RPM Range 1,501-1,600
No. of Speeds 1
Mounting Stud Location 4/Opposite Shaft End
Motor Design Shaded Pole
Motor Mounting Type Stud
Motor Service Factor 1
Application OEM and Replacement Use In A Wide Variety of Fan and Blower
Duty Continuous
Mounting Pattern 2 x 2
Stud/Base Mtg. Pattern 2 in x 2 in
Motor Bearings Sleeve
Item HVAC Motor
Ins. Class B
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Phase Single
Motor Thermal Protection Auto
Motor Sub Application Direct Drive Fan/Blower
Number of Shafts 1
Motor Application HVAC/R
Frame 3.3
Motor Shaft Rotation CCWSE
Motor Shaft Design Flat
Full Load Amps 0.7 A
Max. Ambient Temp. 40 Degrees C
Hz 60 Hz
Capacitor Required No
Motor Mounting Position All Angle
Mounting Stud Pattern 2 in x 2 in
Usable @ 208V No
Usable @ 200V No
Duty Cycle Continuous
Mounting Stud
Type OEM Replacement

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/100 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, Full Load Amps 0.7 A, 3.3 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CCWSE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Number of Shafts 1
