Shop SCHNEIDER ELECTRIC

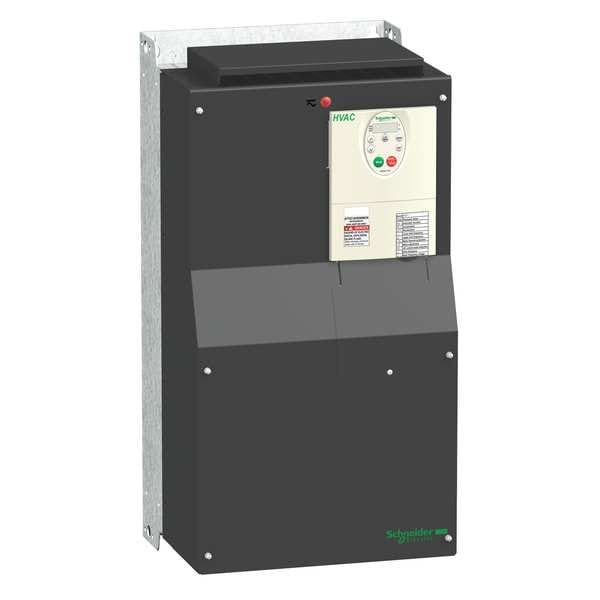

Variable Frequency Drive, 40 HP, 208-240V

  • Mfr # ATV212HD30M3X

  • Zoro # G0789381

product price:  $4,829.99
/ea
Free Shipping & Returns

Key Features

Max. HP
40 hp
Input Voltage
200-240V AC
Output Voltage
170-264V AC
Input Phase AC
Three
Enclosure
Open
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ATV212HD30M3X
Zoro #
G0789381
UPC #
785901921981
Country of Origin
France

Dimensions

Height
24.8 in
Depth
11.42 in
Width
12.6 in
Overall Width
12 5/8 in
Overall Depth
11 3/8 in
Overall Height
24 3/4 in

Details

Item
Variable Frequency Drive
Max. HP
40 hp
Input Voltage
200-240V AC
Output Voltage
170-264V AC
Input Phase AC
Three
Enclosure
Open
Max. Output Amps
117 A
Output Phase AC
Three
With Bypass / No Bypass
No Bypass
With Line Contactor / No Line Contactor
No Line Contactor
Torque @ 1 Hz
110%
Key Pad Lockout
Yes
Start/Stop Control
Programmable
Adjustable Acceleration Time
0.01 to 3,200 sec
Accepts Input Control Signal
Yes
Standards
UL, NOM 117, C-Tick, CSA
For Use With
3-Phase Inverter Duty Motor
Dynamic Braking
No
Protection
Against Exceeding Limit Speed: Drive, Against Input Phase Loss: Drive, Break on the Control Circuit: Drive, Input Phase Breaks: Drive, Line Supply Overvoltage and Undervoltage: Drive, Line Supply Undervoltage: Drive, Motor Phase Break: Motor, Overcurrent Between Output Phases and Earth: Drive, Overheating Protection: Drive, Overvoltage's on the DC Bus: Drive, Short-Circuit Between Motor Phases: Drive, Thermal Power Stage: Drive, Thermal Protection: Motor, With PTC Probes: Motor
Display Type
LED
Adjustable Deceleration Time
0.01 to 3,200 sec
Displays
LED
Input Frequency
60/50 Hz
Starting Torque
200 %
Control Type
Built-In Keypad
Digital Readout
Hertz, Motor Current, KW, Motor Voltage, Bus Energized
Output Frequency Range
0.5 to 200 Hz
Control Method
Keypad or Logic Input
Style
Heat Sink
Maximum Output Current
117 A
Output Voltage Range
200V AC to 240V AC
Brake Chopper Included
No
Application
Compressor for Scroll Building - HV AC, Fan Building - HV AC, Pump Building - HV AC
Number of Inputs
2
Input Type
Analog, Digital
Output Type
Analog
Number of Outputs
(1) Analog; (2) Discrete
Enclosure Rating
NEMA 1
Color
Black
Input Voltage Range
200 to 240V AC
Torque Application
Constant Torque, Variable Torque
Series
ATV212
Ethernet Port Included
No
Maximum Output Power
40 hp
Includes Heat Sink
Yes
Output Frequency - Minimum
200 Hz
Product Type
Variable Frequency Drive
Output Horsepower
40 hp
IP Rating
IP20
Output Frequency - Maximum
0.5 Hz
Number of Outputs - Analog
1
Output Current - Maximum
117 A
Includes Ethernet Port
No
Output Phase
Three
Bypass Design
No Bypass
NEMA Rating
NEMA 1
Line Contactor Design
No Line Contactor
Includes Brake Chopper
No
Input Phase
Three
Keypad Lockout
Yes

Description

Variable Frequency Drive, Input Voltage 200-240V AC, Input Phase AC Three, Input Frequency 60/50 Hz, Maximum Output Power 40 hp, Maximum Output Current 117 A, Output Voltage 170-264V AC, Output Phase AC Three, Output Frequency Range 0.5 to 200 Hz, Enclosure Rating NEMA 1
