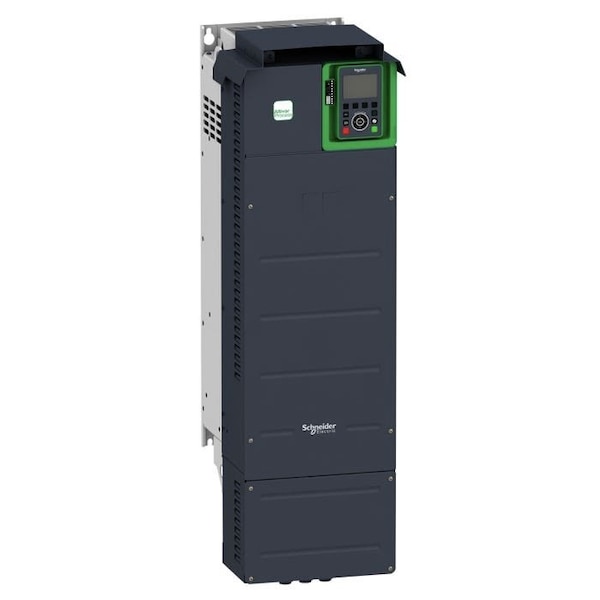

Schneider Electric Variable Frequency Drive, 40 HP, 69.5A ATV630D30N4 - main

Variable Frequency Drive, 40 HP, 69.5A

  • Mfr # ATV630D30N4

  • Zoro # G0211458

product price: $6,639.99
/ea
Item requires special delivery charges. A $70.00 per item surcharge will be applied.

Key Features

Input Phase AC
Three
Start/Stop Control
Programmable
Output Voltage
480V AC
Output Phase AC
Three
Input Voltage
480V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV630D30N4
Zoro #
G0211458
UPC #
785901949060
Country of Origin
United States

Dimensions

Width
8.9 in
Depth
10.67 in
Height
26.5 in
Overall Height
26 1/2 in
Overall Depth
10 3/4 in
Overall Width
8 7/8 in

Details

Input Phase AC
Three
Start/Stop Control
Programmable
Output Voltage
480V AC
Output Phase AC
Three
Input Voltage
480V AC
Control Type
Keypad, Remote Keypad, Terminal, Digital Communication Network
Max. HP
40 hp
Dynamic Braking
No
With Bypass / No Bypass
No Bypass
For Use With
Synchronous, Asynchronous Motors and Special Motors From 800kW to 1.5MW
Output Frequency Range
0.1 to 500 Hz
Control Method
Keypad, Remote Keypad, Terminal, Digital Communication Network
Protection
Motor Phase Break, Overcurrent, Overheating, Overspeed, Overvoltage's, Safe Torque Off, Short-circuit Protection, Thermal Protection, Undervoltage
Adjustable Deceleration Time
0.01 to 9,999 sec
Item
Variable Speed Drive
Input Frequency
50/60 Hz
Max. Output Amps
69.5 A
Display Type
LCD
With Line Contactor / No Line Contactor
With Line Contactor
Accepts Input Control Signal
Yes
Digital Readout
Yes
Displays
LCD Keypad
Enclosure
Totally Enclosed
Adjustable Acceleration Time
0.01 to 9,999 sec
Key Pad Lockout
None
Standards
UL 508C, EN/IEC 61800-3, Environment 1 category C2 EN/IEC 61800-3, Environment 2 category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, IEC 13849-1
Input Voltage Range
380 to 480V AC
Torque Application
Constant Torque, Variable Torque
Number of Outputs
(2) Analog; (3) Relay
Brake Chopper Included
No
Maximum Output Power
40 hp
Style
Compact
Series
Altivar Process ATV600 Variable Speed Drives
Number of Inputs
(3) Analog; (8) Discrete
Output Type
Analog, Discrete
Ethernet Port Included
Yes
Input Type
Analog, Discrete
Application
Industrial Process and Utilities
Output Voltage Range
380V AC to 480V AC
Enclosure Rating
NEMA 1
Maximum Output Current
61.5 A
Color
Black

Description

Variable Speed Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 40 hp, Maximum Output Current 61.5 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.1 to 500 Hz, Enclosure Rating NEMA 1
