Shop CENTURY

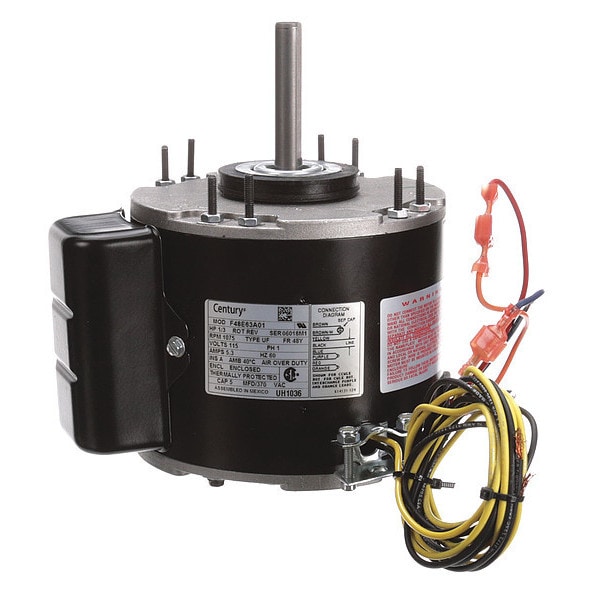

Unit Heater Motor, 1/3 hp

  • Mfr # UH1036

  • Zoro # G3291775

product price:  $216.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
HP
1/3
Nameplate RPM
1,075
Voltage
115V AC
Frame
48Y
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
UH1036
Zoro #
G3291775
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
3 in
Overall Length
8 1/8 in
Ring Dia.
2 1/2 in
Body Dia.
5 5/8 in
Length Less Shaft
5 5/8 in
Lead Length
58 in
Stud Size
#8-32
Bolt Circle Dia.
5 1/8 in
Resilient Ring Dia.
2 1/2 in
Frame Size
48Y
Body Diameter
5.6 in
Shaft Diameter
1/2 in
Bolt Circle Diameter
5 1/8 in
Mounting Stud Thread Size
#8-32

Details

Item
Unit Heater Motor
Motor Design
Permanent Split Capacitor
HP
1/3
Nameplate RPM
1,075
Voltage
115V AC
Frame
48Y
Motor Enclosure Design
Totally Enclosed
Motor Mounting Type
Stud
RPM Range
1,001-1,100
Motor Application
HVAC/R
Motor Sub Application
Unit Heater
Motor Shaft Rotation
CW/CCW
No. of Speeds
1
Includes
Extended Studs, Permanent Split Capacitor, Resilient Rings
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Mounting Stud Pattern
3 5/8 in x 3 5/8 in SE, 4 5/8 in x 2 5/16 in SE
Application
Unit Heater
Hz
60 Hz
Max. Ambient Temp.
40 Degrees C
Full Load Amps
5 A
Ins. Class
A
Motor Thermal Protection
Auto
Ring to Ring Center
5 3/16 in
Motor Service Factor
1
Motor Bearings
Ball
Standards
CSA Certified, UL Recognized
Phase
Single
Duty
Continuous
Conduit Box Location
Exterior
Motor Shaft Design
Flat
Number of Shafts
1
Mounting Holes
(4) #8-32
Stud Quantity
4
Motor Mounting Position
Horizontal
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Capacitor Required
Capacitor Included
Motor Frame Material
Steel
Weight
16 lb
Conduit Box Position
F3
Mounting
Cradle Base
Number of Speeds
1
Ambient Temperature
40 Degrees C
Output Watts
250 W
Insulation Class
A
Sub Application
Unit Heater
Nameplate Service Factor @ 60 Hz
1
Wattage
250 W
Frame Material
Steel
Full Load Current @ 60 Hz
5 A
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Totally Enclosed Air-Over
Mounting Position
Horizontal
Bearing Type
Ball
Shaft Design
Flat
Product Type
Unit Heater Motor
Frequency
60 Hz
Drive Type
Direct Drive

Description

Unit Heater Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 115V AC, 5 A Full Load Amps, 48Y Frame, Output Watts 250 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed, Motor Mounting Type Stud, Motor Frame Material Steel
