  11. Variable Frequency Drive, 5 HP, 17.5A

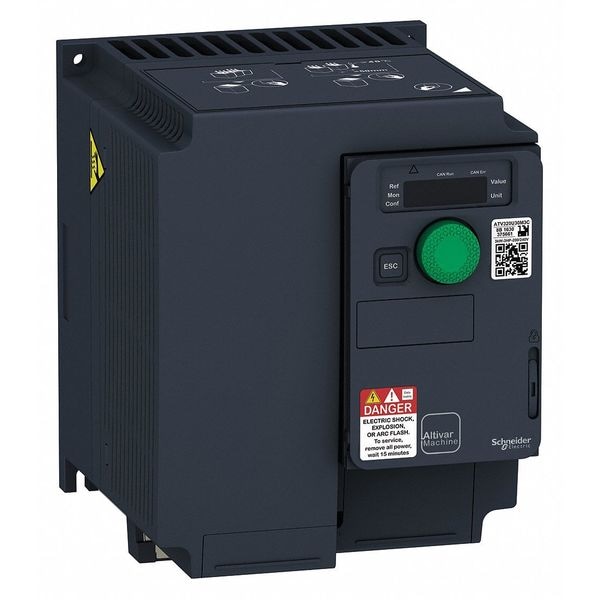

Schneider Electric Variable Frequency Drive, 5 HP, 17.5A ATV320U40M3C - main

Variable Frequency Drive, 5 HP, 17.5A

  • Mfr # ATV320U40M3C

  • Zoro # G5260917

product price: $858.00
/ea
Free Shipping & Returns

Key Features

Start/Stop Control
Programmable
Standards
EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 508C, UL 61800-5-1, CSA C22.2 No 274
Starting Torque
1.5
Max. HP
5 hp
Displays
Set Frequency, Motor Frequency, Hertz, RPM, Custom Units, Motor Current, Motor Voltage, Bus Voltage, Speed, Alarms and Programmable
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV320U40M3C
Zoro #
G5260917
UPC #
785901556671
Country of Origin
Indonesia

Dimensions

Depth
5.9 in
Height
7.24 in
Width
5.51 in
Overall Height
7 1/4 in
Overall Width
5 1/2 in
Overall Depth
6 1/4 in

Details

Start/Stop Control
Programmable
Standards
EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 508C, UL 61800-5-1, CSA C22.2 No 274
Starting Torque
1.5
Max. HP
5 hp
Displays
Set Frequency, Motor Frequency, Hertz, RPM, Custom Units, Motor Current, Motor Voltage, Bus Voltage, Speed, Alarms and Programmable
Output Frequency Range
0.1 to 599 Hz
Output Voltage
240V AC
Adjustable Deceleration Time
0 to 6,000 sec
Enclosure
Totally Enclosed
Input Frequency
50/60 Hz
Display Type
LED
Key Pad Lockout
Yes
Dynamic Braking
No
Torque @ 1 Hz
1.5
Max. Output Amps
17.5 A
Accepts Input Control Signal
0 to 10V DC, 0 to 20mA Adjustable, Bipolar -10 to 10V DC
Output Phase AC
Three
Input Phase AC
Three
With Line Contactor / No Line Contactor
No Line Contactor
With Bypass / No Bypass
No Bypass
Control Type
Keypad, Remote, Terminal, Network
Protection
Input phase breaks: drive, Overcurrent between output phases and earth: drive, Overheating protection: drive, Short-circuit between motor phases: drive, Thermal protection: drive
Adjustable Acceleration Time
0 to 6,000 sec
Control Method
Keypad, Remote, Terminal, Network
Digital Readout
Set Frequency, Motor Frequency, Hertz, RPM, Custom Units, Motor Current, Motor Voltage, Bus Voltage, Speed, Alarms and Programmable
Item
Variable Speed Drive
For Use With
three-phase Asynchronous, Synchronous Motors
Input Voltage
240V AC
Number of Outputs
(1) Analog; (3) Discrete
Application
Complex machines
Number of Inputs
(3) Analog; (7) Discrete
Maximum Output Current
17.5 A
Style
Compact
Ethernet Port Included
No
Input Voltage Range
170 to 264V AC
Enclosure Rating
NEMA 1
Output Type
Analog, Discrete
Input Type
Analog, Discrete
Output Voltage Range
200V AC to 240V AC
Series
Altivar 320
Torque Application
Constant Torque, Variable Torque
Maximum Output Power
5 hp
Brake Chopper Included
Yes
Color
Black

Description

Variable Speed Drive, Input Voltage 240V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 5 hp, Maximum Output Current 17.5 A, Output Voltage 240V AC, Output Phase AC Three, Output Frequency Range 0.1 to 599 Hz, Enclosure Rating NEMA 1
