  11. Variable Frequency Drive, 5 hp, 480V AC

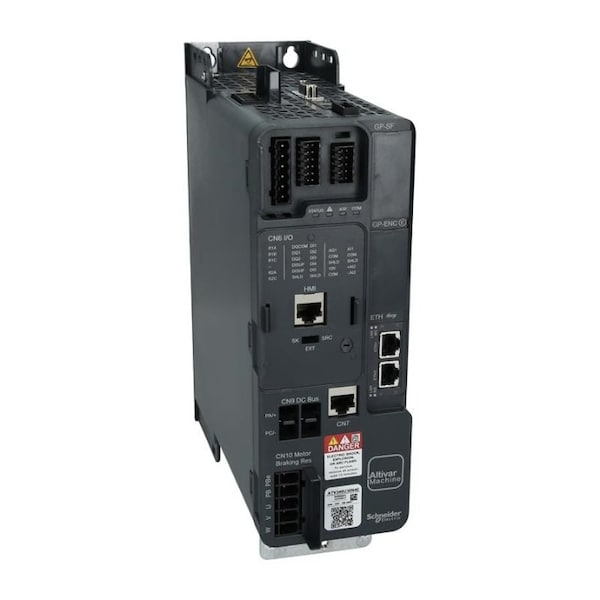

Schneider Electric Variable Frequency Drive, 5 hp, 480V AC ATV340U30N4E - main

Variable Frequency Drive, 5 hp, 480V AC

  • Mfr # ATV340U30N4E

  • Zoro # G3610303

product price: $1,392.99
/ea
Free Shipping & Returns

Key Features

Display Type
None
Control Method
Constant Torque Standard, Optimized Torque Mode, Variable Torque Standard
Height
10.63 in
Protection
Break on the control circuit, DC Bus overvoltage, Exceeding limit speed, Input supply loss, Line supply overvoltage, Line supply undervoltage, Motor phase loss, Output overcurrent between motor phase and earth, Output overcurrent between motor phases, Overcurrent, Overheating, Safe torque off, Short-circuit between motor phase and earth, Short-circuit between motor phases, Thermal protection
With Line Contactor / No Line Contactor
With Line Contactor
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV340U30N4E
Zoro #
G3610303
UPC #
785901718581
Country of Origin
Indonesia

Dimensions

Height
10.63 in
Width
3.35 in
Depth
9.15 in
Overall Depth
9 1/8 in
Overall Height
10 5/8 in
Overall Width
3 3/8 in

Details

Display Type
None
Control Method
Constant Torque Standard, Optimized Torque Mode, Variable Torque Standard
Protection
Break on the control circuit, DC Bus overvoltage, Exceeding limit speed, Input supply loss, Line supply overvoltage, Line supply undervoltage, Motor phase loss, Output overcurrent between motor phase and earth, Output overcurrent between motor phases, Overcurrent, Overheating, Safe torque off, Short-circuit between motor phase and earth, Short-circuit between motor phases, Thermal protection
With Line Contactor / No Line Contactor
With Line Contactor
Max. Output Amps
10.2 A, 11 A, 12.6 A, 13 A
Max. HP
3 hp, 5 hp
For Use With
Three-phase supply voltage: 380...480 V 50/60 Hz
Input Frequency
50/60 Hz
Item
Variable Speed Drive
Output Voltage
480V AC
Standards
EN/IEC 61800-3, Environment 1 Category C2 EN/IEC 61800-3, Environment 2 Category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 618000-5-1
Digital Readout
No
Input Voltage
480V AC
Dynamic Braking
No
Input Phase AC
Three
Displays
None
Start/Stop Control
Programmable
Enclosure Rating
NEMA 1
Adjustable Acceleration Time
0.01 to 9,999 sec
Style
Ethernet
Input Type
Analog, Discrete
Application
Industrial Process and Utilities
Output Frequency Range
0.1 to 599 Hz
Brake Chopper Included
Yes
Output Voltage Range
323V AC to 528V AC
Color
Black
Maximum Output Power
5 hp
Torque Application
Constant Torque, Variable Torque
Key Pad Lockout
None
Maximum Output Current
9.3 A
Number of Inputs
(2) Analog; (1) Discrete; (3) Relay
With Bypass / No Bypass
No Bypass
Series
Altivar Machine ATV340
Adjustable Deceleration Time
0.01 to 9,999 sec
Input Voltage Range
380 to 480V AC
Output Phase AC
Three
Ethernet Port Included
Yes
Enclosure
Open
Output Type
Analog, Discrete
Number of Outputs
(3) Analog; (8) Discrete

Description

Variable Speed Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 5 hp, Maximum Output Current 9.3 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.1 to 599 Hz, Enclosure Rating NEMA 1
