  11. Variable Frequency Drive, 5 HP, 9.5A

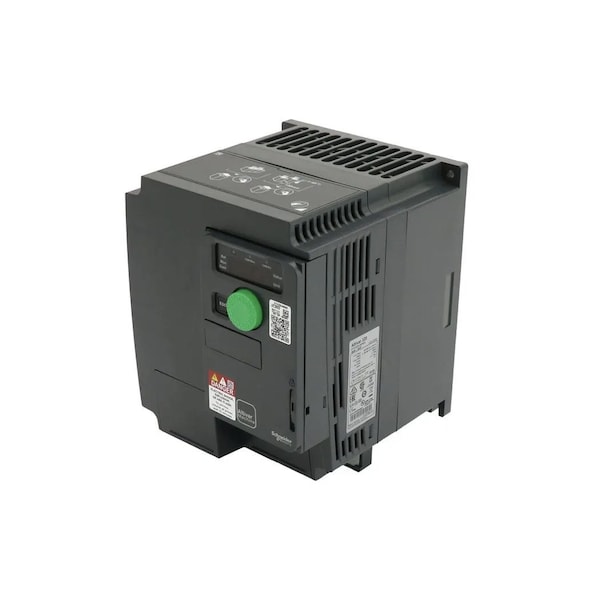

Schneider Electric Variable Frequency Drive, 5 HP, 9.5A ATV320U40N4C - main

Variable Frequency Drive, 5 HP, 9.5A

  • Mfr # ATV320U40N4C

  • Zoro # G5918853

product price: $921.99
/ea
Free Shipping & Returns

Key Features

Control Type
Keypad, Remote, Terminal, Network
Control Method
Keypad, Remote, Terminal, Network
Enclosure
Totally Enclosed
Output Voltage
500V AC
Input Frequency
50/60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV320U40N4C
Zoro #
G5918853
UPC #
785901707103
Country of Origin
Indonesia

Dimensions

Width
5.51 in
Depth
5.9 in
Height
7.24 in
Overall Height
7 1/4 in
Overall Depth
6 1/4 in
Overall Width
5 1/2 in

Details

Control Type
Keypad, Remote, Terminal, Network
Control Method
Keypad, Remote, Terminal, Network
Enclosure
Totally Enclosed
Output Voltage
500V AC
Input Frequency
50/60 Hz
Max. Output Amps
9.5 A
Protection
Input phase breaks: drive, Overcurrent between output phases and earth: drive, Overheating protection: drive, Short-circuit between motor phases: drive, Thermal protection: drive
Max. HP
5 hp
For Use With
three-phase Asynchronous, Synchronous Motors
Adjustable Acceleration Time
0 to 6,000 sec
Adjustable Deceleration Time
0 to 6,000 sec
Key Pad Lockout
Yes
Start/Stop Control
Programmable
Starting Torque
1.5
With Bypass / No Bypass
No Bypass
Display Type
LED
Displays
Set Frequency, Motor Frequency, Hertz, RPM, Custom Units, Motor Current, Motor Voltage, Bus Voltage, Speed, Alarms and Programmable
Accepts Input Control Signal
0 to 10V DC, 0 to 20mA Adjustable, Bipolar -10 to 10V DC
Torque @ 1 Hz
1.5
Input Phase AC
Three
Standards
EN/IEC 61800-3, Environment 1 category C2 EN/IEC 61800-3, Environment 2 category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 508C, UL 61800-5-1, CSA C22.2 No 274
Item
Variable Speed Drive
Output Phase AC
Three
Dynamic Braking
No
Digital Readout
Set Frequency, Motor Frequency, Hertz, RPM, Custom Units, Motor Current, Motor Voltage, Bus Voltage, Speed, Alarms and Programmable
Output Frequency Range
0.1 to 599 Hz
With Line Contactor / No Line Contactor
No Line Contactor
Input Voltage
500V AC
Number of Outputs
(1) Analog; (3) Discrete
Application
Complex machines
Input Voltage Range
323 to 550V AC
Maximum Output Power
5 hp
Input Type
Analog, Discrete
Output Type
Analog, Discrete
Enclosure Rating
NEMA 1
Series
Altivar 320
Ethernet Port Included
No
Maximum Output Current
9.5 A
Color
Black
Number of Inputs
(3) Analog; (7) Discrete
Torque Application
Constant Torque, Variable Torque
Style
Compact
Brake Chopper Included
Yes
Output Voltage Range
380V AC to 500V AC

Description

Variable Speed Drive, Input Voltage 500V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 5 hp, Maximum Output Current 9.5 A, Output Voltage 500V AC, Output Phase AC Three, Output Frequency Range 0.1 to 599 Hz, Enclosure Rating NEMA 1
