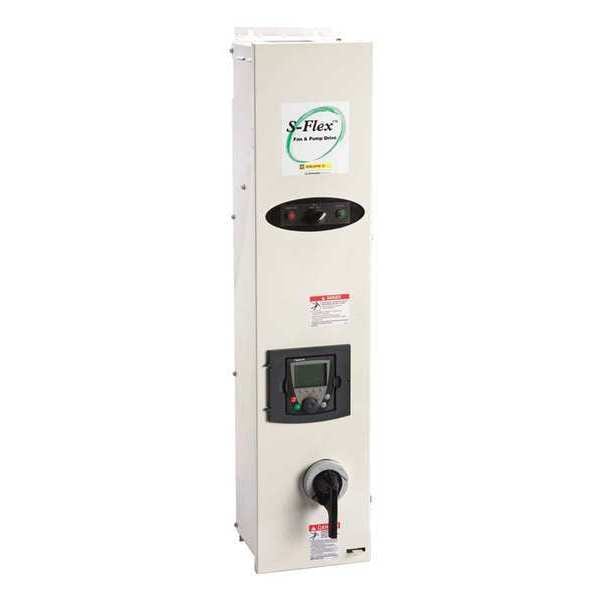

Schneider Electric Variable Frequency Drive, 50 HP, 460V SFD212PG4YB07D07 - main

Variable Frequency Drive, 50 HP, 460V

  • Mfr # SFD212PG4YB07D07

  • Zoro # G0100311

product price: $7,465.99
/ea
Item requires special delivery charges. A $215.00 per item surcharge will be applied.

Key Features

Max. HP
50 hp
Depth
13.181 in
Key Pad Lockout
None
Output Phase AC
Three
With Bypass / No Bypass
With Bypass
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SFD212PG4YB07D07
Zoro #
G0100311
UPC #
785901457176
Country of Origin
Mexico

Dimensions

Depth
13.181 in
Width
12.532 in
Height
60.006 in
Overall Depth
13 1/4 in
Overall Height
60 1/8 in
Overall Width
12 1/2 in

Details

Max. HP
50 hp
Key Pad Lockout
None
Output Phase AC
Three
With Bypass / No Bypass
With Bypass
Digital Readout
Yes
Dynamic Braking
No
Item
S-Flex Enclosed Drive
Output Voltage
460V AC
Accepts Input Control Signal
Remote Contact
Input Phase AC
Three
With Line Contactor / No Line Contactor
With Line Contactor
Enclosure
Totally Enclosed
Start/Stop Control
Programmable
Control Type
Keypad, Remote
Protection
Against Exceeding Limit Speed for Drive, Against Input Phase Loss for Drive, Break On the Control Circuit for Drive, Line Supply Overvoltage and Undervoltage for Drive, Line Supply Undervoltage for Drive, Motor Phase Break for Motor, PTC Probes for Motor, Thermal Protection for Motor
Display Type
LCD
Max. Output Amps
65 A
Input Frequency
50/60 Hz
Displays
LCD
Output Frequency Range
0.5 to 200 Hz
Input Voltage
460V AC
Standards
UL Type 1, CSA, CE, NOM, C-Tick, RoHS
Maximum Output Power
50 hp
Color
Black
Output Type
Analog
Input Voltage Range
460V AC
Maximum Output Current
65 A
Application
Commercial Office Buildings, Residential High Rise and Mixed-Use Buildings, Schools and Campus Environments
Output Voltage Range
460V AC
Series
S-Flex Altivar 212
Torque Application
Constant Torque, Variable Torque
Control Method
Keypad, Remote
Ethernet Port Included
No
Number of Outputs
(1) Analog
Input Type
Analog
Brake Chopper Included
No
Number of Inputs
(2) Analog
Enclosure Rating
NEMA 1

Description

S-Flex Enclosed Drive, Input Voltage 460V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 50 hp, Maximum Output Current 65 A, Output Voltage 460V AC, Output Phase AC Three, Output Frequency Range 0.5 to 200 Hz, Enclosure Rating NEMA 1
