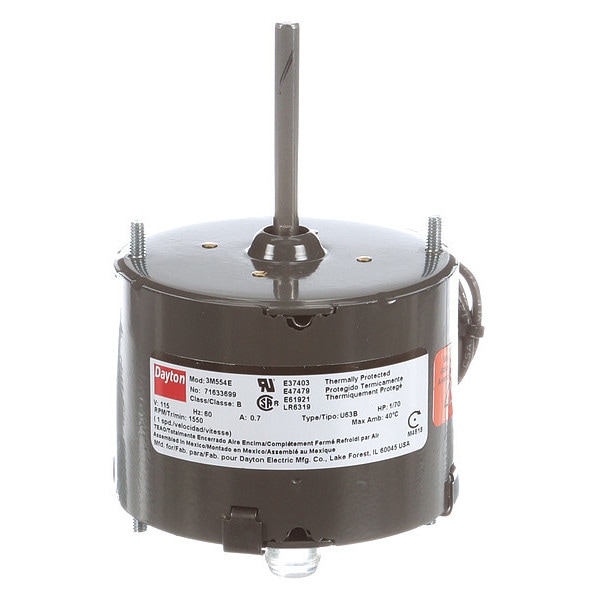

Dayton HVAC Motor, 1/70 HP, 1550 rpm, 115V, 3.3 71633699M - main

HVAC Motor, 1/70 HP, 1550 rpm, 115V, 3.3

  • Mfr # 71633699M

  • Zoro # G2813167

product price:  $67.79
/ea

Key Features

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
1
HP
1/70
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
71633699M
Zoro #
G2813167
UPC #
-
Country of Origin
Mexico

Dimensions

Cord Length
12 in
Shaft Length
2 1/4 in
Shaft Dia.
1/4 in
Body Dia.
3 5/16 in
Length Less Shaft
2 7/8 in
Overall Length
4 3/4 in
Body Diameter
3.3 in
Shaft Diameter
1/4 in
Frame Size
3.3

Details

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
1
HP
1/70
RPM Range
1,501-1,600
Motor Shaft Rotation
CWSE
Duty
Continuous
Item
HVAC Motor
Phase
Single
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Standards
CSA Certified, UL Recognized
Motor Shaft Design
Flat
Motor Bearings
Sleeve
Number of Shafts
1
Motor Design
Shaded Pole
Motor Mounting Type
Ring/Stud
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Auto
No. of Speeds
1
Application
OEM and Replacement Use In A Wide Variety of Fan and Blower
Full Load Amps
0.7 A
Mounting Pattern
2-7/8
Max. Ambient Temp.
40 Degrees C
Stud/Base Mtg. Pattern
2-7/8 in
Ins. Class
B
Mounting Stud Location
2/Both Ends
Hz
60 Hz
Frame
3.3
Motor Service Factor
1
Motor Application
HVAC/R
Capacitor Required
Capacitor Not Required
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Mounting Stud Pattern
2 7/8 in
Motor Mounting Position
All Angle
Usable @ 200V
Not Usable at 200V
Type
OEM Replacement
Mounting
Stud
Bearing Type
Sleeve
Insulation Class
B
Frame Material
Steel
Drive Type
Direct Drive
Wattage
11 W
Frequency
60 Hz
Full Load Current @ 60 Hz
0.7 A
Shaft Design
Flat
Nameplate Service Factor @ 60 Hz
1
Sub Application
General Purpose
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Totally Enclosed Air-Over

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/70 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 0.7 A Full Load Amps, 3.3 Frame, Output Watts 11 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
