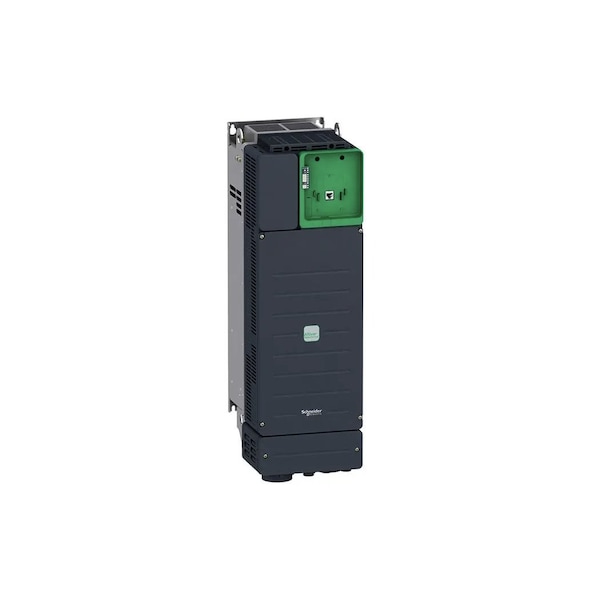

Schneider Electric Variable Frequency Drive, 50 hp, 480V AC ATV340D30N4E - main

Variable Frequency Drive, 50 hp, 480V AC

  • Mfr # ATV340D30N4E

  • Zoro # G3616987

product price: $5,719.99
/ea
Free Shipping & Returns

Key Features

Control Method
Variable Torque Standard, Optimized Torque Mode, Constant Torque Standard
Input Frequency
50/60 Hz
With Line Contactor / No Line Contactor
With Line Contactor
Protection
Break on the control circuit, DC Bus overvoltage, Exceeding limit speed, Input supply loss, Line supply overvoltage, Line supply undervoltage, Motor phase loss, Output overcurrent between motor phase and earth, Output overcurrent between motor phases, Overcurrent, Overheating, Safe torque off, Short-circuit between motor phase and earth, Short-circuit between motor phases, Thermal protection
Dynamic Braking
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV340D30N4E
Zoro #
G3616987
UPC #
785901751892
Country of Origin
China

Dimensions

Depth
10.31 in
Width
8.39 in
Height
25.98 in
Overall Height
26 in
Overall Depth
10 3/8 in
Overall Width
8 3/8 in

Details

Control Method
Variable Torque Standard, Optimized Torque Mode, Constant Torque Standard
Input Frequency
50/60 Hz
With Line Contactor / No Line Contactor
With Line Contactor
Protection
Break on the control circuit, DC Bus overvoltage, Exceeding limit speed, Input supply loss, Line supply overvoltage, Line supply undervoltage, Motor phase loss, Output overcurrent between motor phase and earth, Output overcurrent between motor phases, Overcurrent, Overheating, Safe torque off, Short-circuit between motor phase and earth, Short-circuit between motor phases, Thermal protection
Item
Variable Speed Drive
Dynamic Braking
No
Digital Readout
No
Input Phase AC
Three
Max. Output Amps
89.4 A, 92.3 A
Max. HP
40 hp, 50 hp
Output Voltage
480V AC
Input Voltage
480V AC
For Use With
Three-phase supply voltage: 380...480 V 50/60 Hz
Standards
EN/IEC 61800-3, Environment 1 Category C2 EN/IEC 61800-3, Environment 2 Category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 618000-5-1
Display Type
None
Brake Chopper Included
Yes
With Bypass / No Bypass
No Bypass
Key Pad Lockout
None
Number of Inputs
(2) Analog; (1) Discrete; (3) Relay
Input Type
Analog, Discrete
Style
Ethernet
Enclosure Rating
NEMA 1
Adjustable Acceleration Time
0.01 to 9,999 sec
Number of Outputs
(3) Analog; (8) Discrete
Color
Black
Torque Application
Constant Torque, Variable Torque
Enclosure
Open
Output Type
Analog, Discrete
Adjustable Deceleration Time
0.01 to 9,999 sec
Ethernet Port Included
Yes
Series
Altivar Machine ATV340
Displays
None
Start/Stop Control
Programmable
Output Frequency Range
0.1 to 599 Hz
Input Voltage Range
380 to 480V AC
Maximum Output Current
74.5 A
Application
Industrial Process and Utilities
Output Voltage Range
323V AC to 528V AC
Output Phase AC
Three
Maximum Output Power
50 hp

Description

Variable Speed Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 50 hp, Maximum Output Current 74.5 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.1 to 599 Hz, Enclosure Rating NEMA 1
