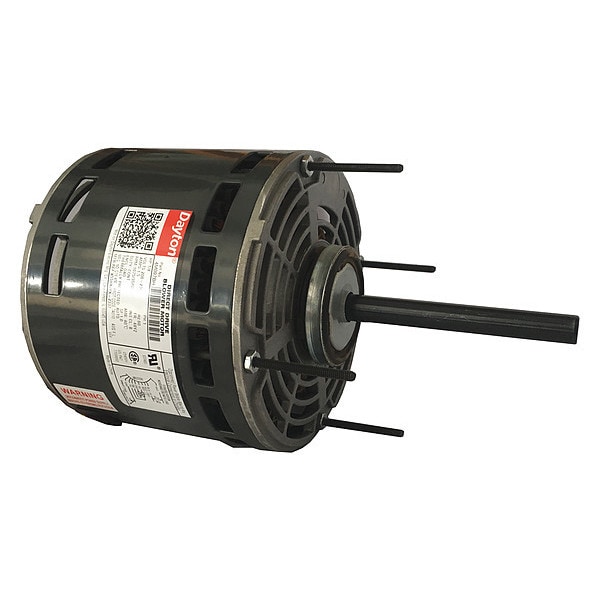

Motor, 1/4hp, D/D Blower

DAYTON| Zoro #: G0353236| Mfr #: 4M097BG

$78.92 /ea

qty
This item ships free. Details.Standard ground shipping.
Details:
Capacitor Required: 2MDV4Motor Shaft Design: FlatNameplate RPM: 1075
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G0353236 Mfr #: 4M097BG
Capacitor Required: 2MDV4Motor Shaft Design: Flat
Nameplate RPM: 1075Nominal Efficiency: 57.40%
Motor Application: HVAC/RMotor Bearings: Sleeve
Ins. Class: BResilient Ring Dia.: 2-1/4"
Motor Thermal Protection: AutoApplication: Direct-drive Furnace Blowers, Unit Heaters, Air Conditioners and many other Shaft-mounted Fan and Blower Uses
HP: 1/4Includes: Split Rings to Increase Ring Diameter to 2 1/2"
Frame: 48YZRPM Range: 1001-1100
Voltage Compatibility: 115/208-230, 208-230, 208-240Body Dia.: 5-5/8"
Motor Mounting Position: All AngleItem: Direct Drive Blower Motor
Length Less Shaft: 5-11/16"Standards: UL Recognized (E37403), CSA Certified (258501)
Motor Mounting Type: StudMotor Service Factor: 1.00
Phase: 1Voltage: 208-230
Motor Sub Application: Direct Drive Fan/BlowerBolt Circle Dia.: 5-1/8"
Motor Design: Permanent Split CapacitorFull Load Amps: 19.9-17.8/8.9
Motor Enclosure Design: Open Air-OverDuty: Continuous
No. of Speeds: 3Shaft Dia.: 1/2"
Hz: 60Overall Length: 9-11/16"
Ring to Ring Center: 5-1/4"Motor Shaft Rotation: CW/CCW
Shaft Length: 4"Max. Ambient Temp.: 40 Degrees C
Country of Origin (subject to change): China

Description

Direct Drive Blower Motor, Permanent Split Capacitor Motor Design, Open Air-Over Motor Enclosure Design, 1/4 HP, 1075 Nameplate RPM, Voltage 208-230, 1.5-1.7 Full Load Amps, 60 Hz, 1 Phase, 48YZ Frame, Motor Service Factor 1.00, Max. Ambient Temp. 40 Degrees C, Ins. Class B, Duty Continuous, No. of Speeds 3, Motor Mounting Type Stud, Motor Mounting Position All Angle, Motor Bearings Sleeve, Motor Thermal Protection Auto, Motor Shaft Rotation CW/CCW, Length Less Shaft 5-11/16 In.
