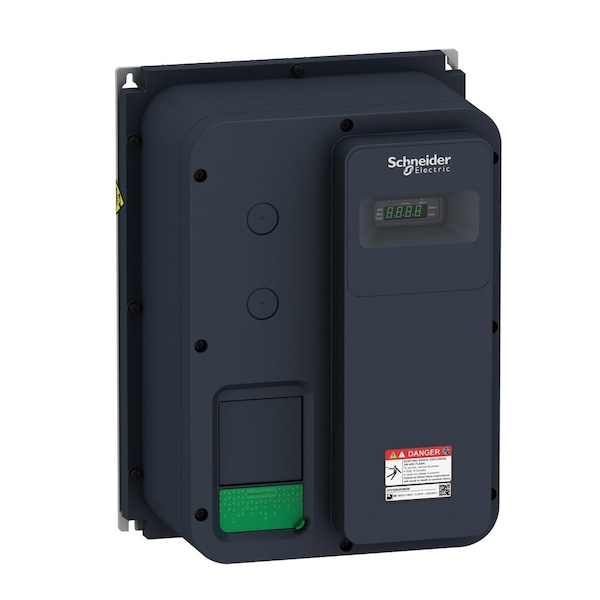

Schneider Electric Variable FrequencyDrive, 240V, Black/Green ATV320U07M2W - main

Variable FrequencyDrive, 240V, Black/Green

  • Mfr # ATV320U07M2W

  • Zoro # G713328306

product price:  $642.99
/ea
Item requires special delivery charges. A $120.00 per item surcharge will be applied.

Key Features

Output Phase AC
Single
Enclosure
Totally Enclosed
Display Type
LED
Standards
ATEX, CE Certified, CSA Certified, EAC, GOST, IEC 61800-5-1, KC, NOM, RCM, REACH Regulation, RoHS Compliant, UL Listed
Input Voltage
240V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ATV320U07M2W
Zoro #
G713328306
UPC #
3606489548421
Country of Origin
United States

Dimensions

Overall Width
9 7/8 in
Overall Height
13 3/8 in
Overall Depth
7 1/8 in

Details

Output Phase AC
Single
Enclosure
Totally Enclosed
Display Type
LED
Standards
ATEX, CE Certified, CSA Certified, EAC, GOST, IEC 61800-5-1, KC, NOM, RCM, REACH Regulation, RoHS Compliant, UL Listed
Input Voltage
240V
Output Frequency Range
0.599 kHz
Protection
Input Phase Breaks Drive, Overcurrent Between Output Phases and Earth Drive, Overheating Protection Drive, Short-Circuit Between Motor Phases Drive, Thermal Protection Drive
Input Phase AC
Single
Displays
LED
Output Voltage
240V AC
Control Method
Remote
Input Frequency
50/60 Hz
With Bypass / No Bypass
No Bypass
Dynamic Braking
Yes
Digital Readout
Output Current; Output Frequency; Output Voltage
Item
Variable Frequency Drive
Control Type
Remote
Start/Stop Control
Programmable
With Line Contactor / No Line Contactor
With Line Contactor
Input Voltage Range
200V AC to 240V AC
Enclosure Rating
IP66
Number of Outputs
(1) Analog, (3) Digital
Brake Chopper Included
Yes
Input Type
Analog, Digital
Output Type
Analog, Digital
Maximum Output Current
4.8 A
Series
ATV320
Number of Inputs
(3) Analog, (7) Digital
Output Voltage Range
200V AC to 240V AC
Ethernet Port Included
Yes
Application
Complex Machines
Style
Compact
Torque Application
Constant Torque, Variable Torque
Maximum Output Power
1 hp
Color
Black/Green

Description

Variable Frequency Drive, Input Phase AC Single, Input Frequency 60/50 Hz, Maximum Output Power 1 hp, Maximum Output Current 4.8 A, Output Phase AC Single, Output Frequency Range 0.599 kHz, Enclosure Rating IP66
