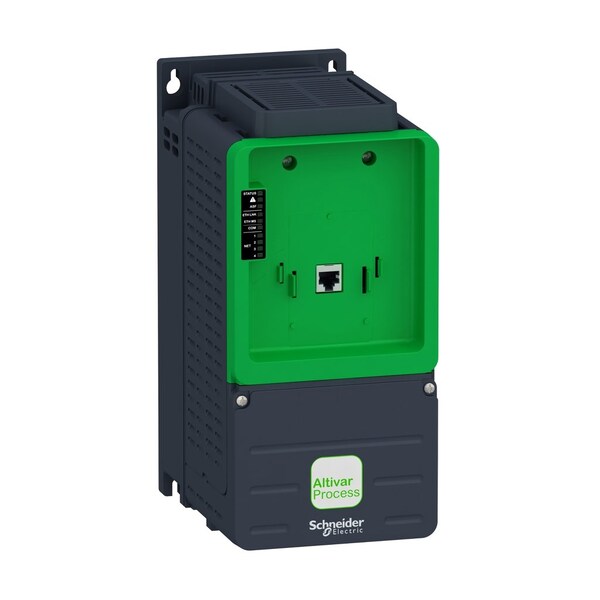

Schneider Electric Variable FrequencyDrive, 480V, Black/Green ATV630U40N4ZU - main

Variable FrequencyDrive, 480V, Black/Green

  • Mfr # ATV630U40N4ZU

  • Zoro # G413321799

product price: $2,005.99
/ea
Free Shipping & Returns

Key Features

Number of Inputs
(3) Analog, (8) Digital
Number of Outputs
(2) Analog
Standards
ATEX INERIS, ATEX Zone, CE Certified, CSA Certified, DNV-GL, EN/IEC 61800-3, EN/IEC 61800-3 Environment 1 Category C2, EN/IEC 61800-3 Environment 2 Category C3, EN/IEC 61800-5-1, IEC 13849-1, IEC 60721-3, IEC 61000-3-12, IEC 61508, REACH Regulation, RoHS Compliant, UL 508C, UL Listed, UV
Input Voltage
480V
Output Type
Analog, Digital
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV630U40N4ZU
Zoro #
G413321799
UPC #
3606489739881
Country of Origin
Indonesia

Dimensions

Overall Height
11 1/4 in
Overall Depth
7 3/4 in
Overall Width
5 1/8 in

Details

Item
Variable Frequency Drive
Number of Inputs
(3) Analog, (8) Digital
Number of Outputs
(2) Analog
Standards
ATEX INERIS, ATEX Zone, CE Certified, CSA Certified, DNV-GL, EN/IEC 61800-3, EN/IEC 61800-3 Environment 1 Category C2, EN/IEC 61800-3 Environment 2 Category C3, EN/IEC 61800-5-1, IEC 13849-1, IEC 60721-3, IEC 61000-3-12, IEC 61508, REACH Regulation, RoHS Compliant, UL 508C, UL Listed, UV
Input Voltage
480V
Output Type
Analog, Digital
Output Voltage Range
380V AC to 480V AC
Digital Readout
Output Current; Output Frequency; Output Voltage
Display Type
LED
Adjustable Deceleration Time
0.01 to 9,999 sec
Control Method
Remote
Protection
Break on the Control Circuit Drive, Line Supply Overvoltage Drive, Line Supply Phase Loss Drive, Line Supply Undervoltage Drive, Motor Phase Break Drive, Motor Phase Break Motor, Overcurrent Between Output Phases and Earth Drive, Overheating Drive, Overload of Output Voltage Drive, Overspeed Drive, Overvoltage's on the DC Bus Drive, Safe Torque Off Drive, Safe Torque Off Motor, Short-Circuit Protection Drive, Thermal Protection Drive, Thermal Protection Motor
Output Phase AC
Three
Input Voltage Range
380V AC to 480V AC
With Bypass / No Bypass
No Bypass
Input Frequency
50/60 Hz
Output Voltage
480V AC
Adjustable Acceleration Time
0.01 to 9,999 sec
Input Type
Analog, Digital
Dynamic Braking
No
With Line Contactor / No Line Contactor
With Line Contactor
Control Type
Remote
Input Phase AC
Three
Application
Process and Utilities
Brake Chopper Included
No
Start/Stop Control
Programmable
Series
ATV630
Torque Application
Constant Torque, Variable Torque
Enclosure
Open
Maximum Output Power
5 hp
Output Frequency Range
0.1 to 500 Hz
Displays
LED
Ethernet Port Included
Yes
Style
Compact
Maximum Output Current
9.3 A
Color
Black/Green
Enclosure Rating
IP00

Description

Variable Frequency Drive, Input Voltage 480V, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 5 hp, Maximum Output Current 9.3 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.1 to 500 Hz, Enclosure Rating IP00
