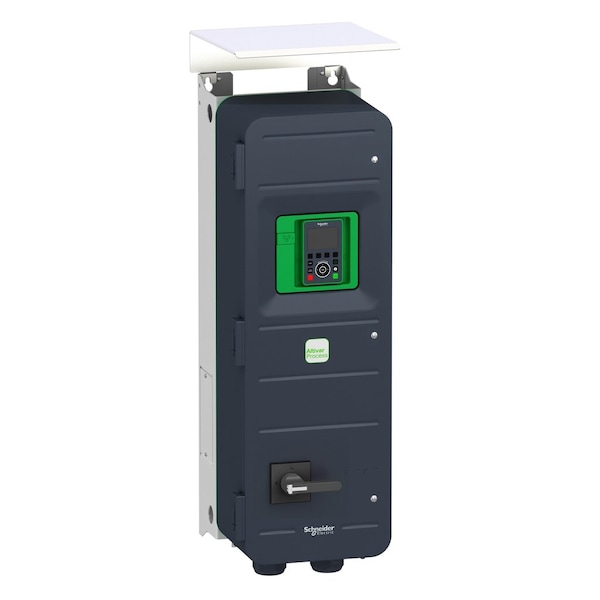

Schneider Electric Variable FrequencyDrive, 480V, Black/Green ATV650D30N4EU - main

Variable FrequencyDrive, 480V, Black/Green

  • Mfr # ATV650D30N4EU

  • Zoro # G413302323

product price: $7,180.99
/ea
Item requires special delivery charges. A $110.00 per item surcharge will be applied.

Key Features

Input Frequency
50/60 Hz
Standards
ATEX INERIS, ATEX Zone, Bureau Veritas, CE Certified, CSA Certified, DNV-GL, EN/IEC 61800-3 Environment 2 Category C3, IEC 13849-1, IEC 60721-3, IEC 61000-3-12, IEC 61508, IEC 61800-3, IEC 61800-3 Environment 1 Category C2, IEC 61800-5-1, REACH Regulation, RoHS Compliant, UL Listed, UV
Start/Stop Control
Programmable
Digital Readout
Output Current; Output Frequency; Output Voltage
Output Voltage
480V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV650D30N4EU
Zoro #
G413302323
UPC #
3606480907029
Country of Origin
China

Dimensions

Overall Depth
15 3/4 in
Overall Width
11 3/8 in
Overall Height
35 7/8 in

Details

Input Frequency
50/60 Hz
Standards
ATEX INERIS, ATEX Zone, Bureau Veritas, CE Certified, CSA Certified, DNV-GL, EN/IEC 61800-3 Environment 2 Category C3, IEC 13849-1, IEC 60721-3, IEC 61000-3-12, IEC 61508, IEC 61800-3, IEC 61800-3 Environment 1 Category C2, IEC 61800-5-1, REACH Regulation, RoHS Compliant, UL Listed, UV
Start/Stop Control
Programmable
Digital Readout
Output Current; Output Frequency; Output Voltage
Output Voltage
480V AC
Input Voltage
480V
Item
Variable Frequency Drive
Protection
Break on the Control Circuit Drive, Line Supply Overvoltage Drive, Line Supply Phase Loss Drive, Line Supply Undervoltage Drive, Motor Phase Break Drive, Motor Phase Break Motor, Overcurrent Between Output Phases and Earth Drive, Overheating Drive, Overload of Output Voltage Drive, Overspeed Drive, Overvoltage's on the DC Bus Drive, Safe Torque Off Drive, Safe Torque Off Motor, Short-Circuit Protection Drive, Thermal Protection Drive, Thermal Protection Motor
Enclosure
Totally Enclosed
With Bypass / No Bypass
No Bypass
Control Method
RJ45 on the Remote Graphic Terminal Ethernet/Modbus TCP; RJ45 on the Remote Graphic Terminal Modbus Serial
Output Frequency Range
0.1 to 500 Hz
Control Type
RJ45 on the Remote Graphic Terminal Ethernet/Modbus TCP; RJ45 on the Remote Graphic Terminal Modbus Serial
Adjustable Deceleration Time
0.01 to 9,999 sec
Adjustable Acceleration Time
0.01 to 9,999 sec
With Line Contactor / No Line Contactor
With Line Contactor
Dynamic Braking
No
Output Phase AC
Three
Input Phase AC
Three
Ethernet Port Included
Yes
Output Type
Analog
Series
ATV650
Input Voltage Range
380V AC to 480V AC
Torque Application
Constant Torque, Variable Torque
Number of Outputs
(2) Analog
Application
Fluids Management Processing and Energy Saving
Input Type
Analog, Digital
Number of Inputs
(3) Analog, (8) Digital
Brake Chopper Included
No
Output Voltage Range
380V AC to 480V AC
Maximum Output Power
40 hp
Maximum Output Current
61.5 A
Style
Compact
Color
Black/Green
Enclosure Rating
NEMA 12

Description

Variable Frequency Drive, Input Voltage 480V, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 40 hp, Maximum Output Current 61.5 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.1 to 500 Hz, Enclosure Rating NEMA 12
