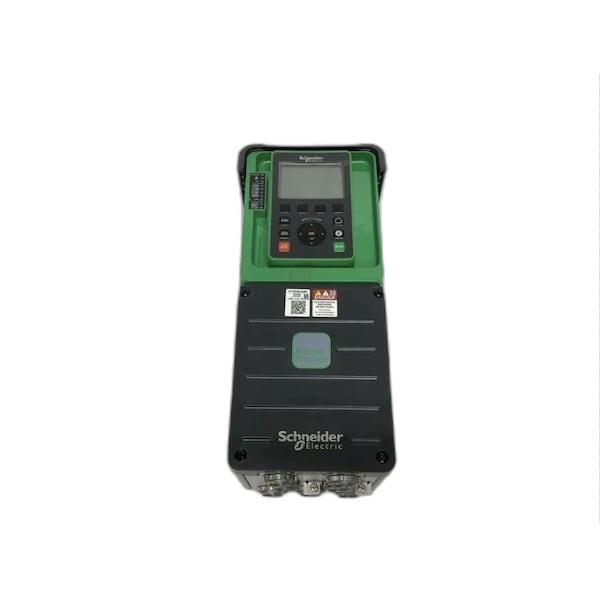

Schneider Electric Variable FrequencyDrive, 480V, Black/Green ATV930U55N4 - main

Variable FrequencyDrive, 480V, Black/Green

  • Mfr # ATV930U55N4

  • Zoro # G413328286

product price:  $2,739.99
/ea
Item requires special delivery charges. A $115.00 per item surcharge will be applied.

Key Features

Start/Stop Control
Programmable
With Bypass / No Bypass
No Bypass
Adjustable Deceleration Time
0.01 to 9,999 sec
With Line Contactor / No Line Contactor
With Line Contactor
Output Voltage
480V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ATV930U55N4
Zoro #
G413328286
UPC #
3606480883309
Country of Origin
United States

Dimensions

Overall Depth
8 1/8 in
Overall Width
5 5/8 in
Overall Height
13 3/4 in

Details

Start/Stop Control
Programmable
With Bypass / No Bypass
No Bypass
Adjustable Deceleration Time
0.01 to 9,999 sec
With Line Contactor / No Line Contactor
With Line Contactor
Output Voltage
480V AC
Protection
Break on the Control Circuit Drive, Line Supply Overvoltage Drive, Line Supply Phase Loss Drive, Line Supply Undervoltage Drive, Motor Phase Break Drive, Motor Phase Break Motor, Overcurrent Between Output Phases and Earth Drive, Overheating Drive, Overload of Output Voltage Drive, Overspeed Drive, Overvoltage's on the DC Bus Drive, Safe Torque Off Drive, Safe Torque Off Motor, Short-Circuit Protection Drive, Thermal Protection Drive, Thermal Protection Motor
Item
Variable Frequency Drive
Control Type
Local and Remote
Control Method
Local and Remote
Input Phase AC
Three
Input Voltage
480V
Enclosure
Open
Adjustable Acceleration Time
0.01 to 9,999 sec
Output Frequency Range
599 Hz
Output Phase AC
Three
Dynamic Braking
Yes
Digital Readout
Output Current; Output Frequency; Output Voltage
Standards
CE Certified, CSA Certified, IEC 13849-1, IEC 60721-3, IEC 61000-3-12, IEC 61508, IEC 61800-3, IEC 61800-5-1, REACH Regulation, RoHS Compliant, UL 508C, UL Listed, UV, WEEE
Input Frequency
50/60 Hz
Series
ATV930
Input Voltage Range
380V AC to 480V AC
Application
Industrial
Ethernet Port Included
Yes
Number of Inputs
(10) Digital, (3) Analog
Brake Chopper Included
Yes
Output Type
Analog, Digital
Input Type
Analog, Digital
Torque Application
Constant Torque, Variable Torque
Output Voltage Range
380V AC to 480V AC
Number of Outputs
(2) Analog, (2) Digital
Color
Black/Green
Maximum Output Power
7 1/2 hp
Style
Compact
Maximum Output Current
12.7 A
Enclosure Rating
IP21

Description

Variable Frequency Drive, Input Phase AC Three, Input Frequency 60/50 Hz, Maximum Output Power 7 1/2 hp, Maximum Output Current 12.7 A, Output Phase AC Three, Output Frequency Range 599 Hz, Enclosure Rating IP21
