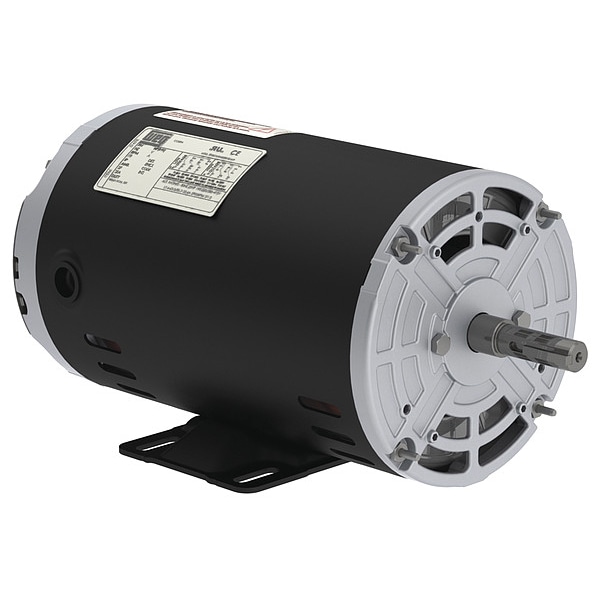

Weg Three-Phase General Purpose Motor, 1/2 HP, 56 Frame, 208-230/460V AC Voltage, 1765 rpm Nameplate RPM .5018OT3E56-S - main

Three-Phase General Purpose Motor, 1/2 HP, 56 Frame, 208-230/460V AC Voltage, 1765 rpm Nameplate RPM

  • Mfr # .5018OT3E56-S

  • Zoro # G7745355

product price:  $263.44
/ea
Free Shipping & Returns

Key Features

HP
1/2
Nameplate RPM
1765 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
1.90-1.72/0.861 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
.5018OT3E56-S
Zoro #
G7745355
UPC #
-
Country of Origin
Multiple

Dimensions

Length Less Shaft
8 13/16 in
Overall Length
10 11/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
3 yr

Details

Item
General Purpose Motor
HP
1/2
Nameplate RPM
1765 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
1.90-1.72/0.861 A
Frame
56
Motor Bearings
Ball
Motor Service Factor
1.25
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
78.2 %
Standards
CSA, UL
CC Number
CC029A
Inverter Rated
Yes
Motor Thermal Protection
None
Includes
Conduit Box
Green Certification or Other Recognition
NEMA Premium(R) Rated
Voltage @ 50Hz
190/380, 220/415
Usable @ 200V
No
Duty Cycle
Continuous
Weight
20.6 lb
Usable @ 208V
Yes
Service Factor @ 50Hz
1.25
HP @ 50Hz
1/2 hp
RPM @ 50Hz
1450/1455 rpm
Full Load Amps @ 50Hz
1.79/0.948, 1.89/0.943 A

Description

The WEG - .5018OT3E56-S is a 3-Phase AC General Purpose Motor, widely used in industrial and commercial settings for power transmission and pneumatics applications. This motor efficiently converts electrical energy into mechanical energy to operate different types of machinery across various sectors, from manufacturing lines to HVAC systems.

Key Features of the WEG - .5018OT3E56-S General Purpose Motor:

  • CC Number: The unique identifier assigned by EASA classifies this motor based on its design, specifications, and performance characteristics.
  • Duty Cycle: This motor is designed for continuous operation as per its specifications.
  • Frame: A size 56 frame houses and supports the internal parts of the motor conforming to standard specifications for compatibility and interchangeability.
  • Inverter Rated: Yes - this suggests compatibility with variable frequency drives for potential control over speed and torque.
  • NEMA Premium(R) Rated: Acknowledges that this 3-Phase AC Motor meets certain environmental and energy efficiency standards making it an eco-friendly choice for industry professionals.
  • Horsepower (HP): The product has an output rating of 45659 HP, which may suit certain heavy-duty operations based on specific application requirements.
  • Motor Enclosure Design: The open drip proof design aims to protect internal components from certain environmental elements like dust and water. It also contributes to the cooling method used.
