  11. Variable FrequencyDrive, 600V, Black/Green

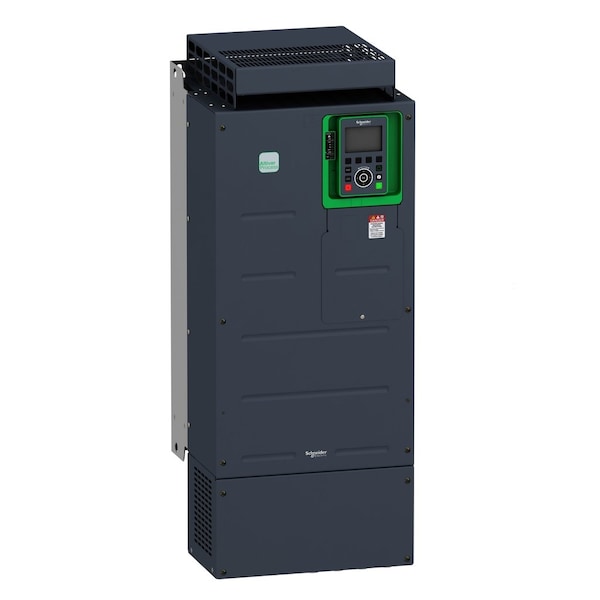

Schneider Electric Variable FrequencyDrive, 600V, Black/Green ATV630D37S6 - main

Variable FrequencyDrive, 600V, Black/Green

  • Mfr # ATV630D37S6

  • Zoro # G113302388

product price: $7,607.99
/ea
Free Shipping & Returns

Key Features

With Bypass / No Bypass
No Bypass
Input Phase AC
Three
Start/Stop Control
Programmable
Adjustable Deceleration Time
0.01 to 9,999 sec
Input Voltage
600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV630D37S6
Zoro #
G113302388
UPC #
3606481324924
Country of Origin
India

Dimensions

Overall Width
13 in
Overall Depth
11 3/4 in
Overall Height
32 3/8 in

Details

With Bypass / No Bypass
No Bypass
Input Phase AC
Three
Start/Stop Control
Programmable
Item
Variable Frequency Drive
Adjustable Deceleration Time
0.01 to 9,999 sec
Input Voltage
600V
Standards
CE Certified, CSA Certified, IEC 13849-1, IEC 60721-3, IEC 61000-3-12, IEC 61508, IEC 61800-3, IEC 61800-5-1, REACH Regulation, RoHS Compliant, UL 508C, UL Listed, UV
Input Frequency
50/60 Hz
Display Type
LED
Dynamic Braking
No
With Line Contactor / No Line Contactor
With Line Contactor
Digital Readout
Output Current; Output Frequency; Output Voltage
Output Voltage
600V AC
Output Frequency Range
0.1 to 500 Hz
Control Method
Remote
Enclosure
Open
Displays
LED
Adjustable Acceleration Time
0.01 to 9,999 sec
Protection
Break on the Control Circuit Drive, Line Supply Overvoltage Drive, Line Supply Phase Loss Drive, Line Supply Undervoltage Drive, Motor Phase Break Drive, Motor Phase Break Motor, Overcurrent Between Output Phases and Earth Drive, Overheating Drive, Overload of Output Voltage Drive, Overspeed Drive, Overvoltage's on the DC Bus Drive, Safe Torque Off Drive, Safe Torque Off Motor, Short-Circuit Protection Drive, Thermal Protection Drive, Thermal Protection Motor
Control Type
Remote
Output Phase AC
Three
Number of Outputs
(2) Analog
Application
Process and Utilities
Output Type
Analog, Digital
Ethernet Port Included
Yes
Torque Application
Constant Torque, Variable Torque
Number of Inputs
(3) Analog, (8) Digital
Input Type
Analog, Digital
Enclosure Rating
IP20
Series
ATV630
Color
Black/Green
Maximum Output Power
60 hp
Style
Compact
Input Voltage Range
600V AC
Output Voltage Range
600V AC
Brake Chopper Included
No
Maximum Output Current
55 A

Description

Variable Frequency Drive, Input Voltage 600V, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 60 hp, Maximum Output Current 55 A, Output Voltage 600V AC, Output Phase AC Three, Output Frequency Range 0.1 to 500 Hz, Enclosure Rating IP20
