  11. Variable Speed Drive, 9.125" H, 200/240V

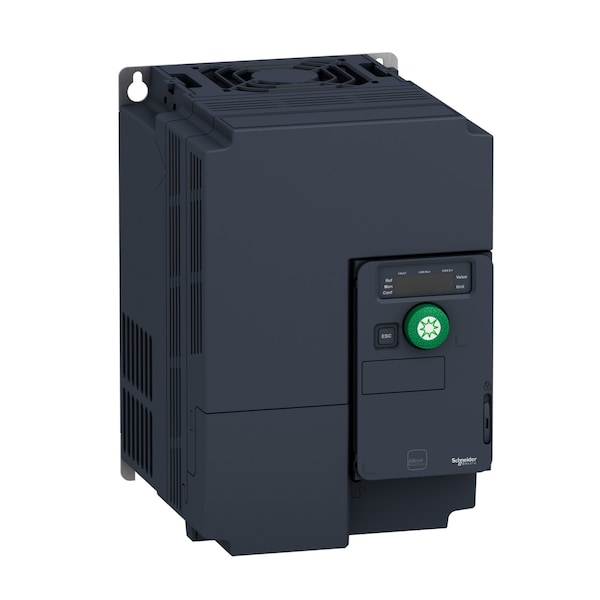

Schneider Electric Variable Speed Drive, 9.125" H, 200/240V ATV320U55M3C412 - main

Variable Speed Drive, 9.125" H, 200/240V

  • Mfr # ATV320U55M3C412

  • Zoro # G116312971

product price: $1,178.99
/ea
Free Shipping & Returns

Key Features

Control Method
Remote
Input Phase AC
Three
Input Voltage
200 to 240V
Adjustable Deceleration Time
0.01 to 6,000 sec
Output Voltage
240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV320U55M3C412
Zoro #
G116312971
UPC #
3606486835814
Country of Origin
Indonesia

Dimensions

Overall Width
5 7/8 in
Overall Depth
7 in
Overall Height
9 1/8 in

Details

Control Method
Remote
Input Phase AC
Three
Item
Variable Speed Drive
Input Voltage
200 to 240V
Adjustable Deceleration Time
0.01 to 6,000 sec
Output Voltage
240V
Control Type
Remote
Output Phase AC
Three
Accepts Input Control Signal
Remote Contact
Enclosure
Totally Enclosed
Display Type
LED
Displays
LED
Start/Stop Control
Manual
Adjustable Acceleration Time
0.01 to 6,000 sec
Application
Pumping
Input Frequency
50 to 60 Hz
Output Frequency Range
0 to 0.599 kHz
Standards
IEC 61800-5-1
With Line Contactor / No Line Contactor
No Line Contactor
Protection
Input Phase Breaks Drive, Overcurrent Between Output Phases and Earth Drive, Overheating Protection Drive, Short-Circuit Between Motor Phases Drive, Thermal Protection
With Bypass / No Bypass
No Bypass
Digital Readout
Output Current
Torque Application
Variable Torque
Style
Compact
Number of Outputs
(2) Relay; (3) Discrete; Analog
Output Type
Analog, Digital
Enclosure Rating
IP20
Maximum Output Current
27.5 A
Series
Altivar Solar
Number of Inputs
(3) Analog; (7) Discrete
Maximum Output Power
7 1/2 hp
Input Type
Analog, Digital
Brake Chopper Included
Yes

Description

Variable Speed Drive, Input Voltage 200 to 240V, Input Phase AC Three, Input Frequency 50 to 60 Hz, Maximum Output Power 7 1/2 hp, Maximum Output Current 27.5 A, Output Voltage 240V, Output Phase AC Three, Output Frequency Range 0 to 0.599 kHz, Enclosure Rating IP20

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
