Item

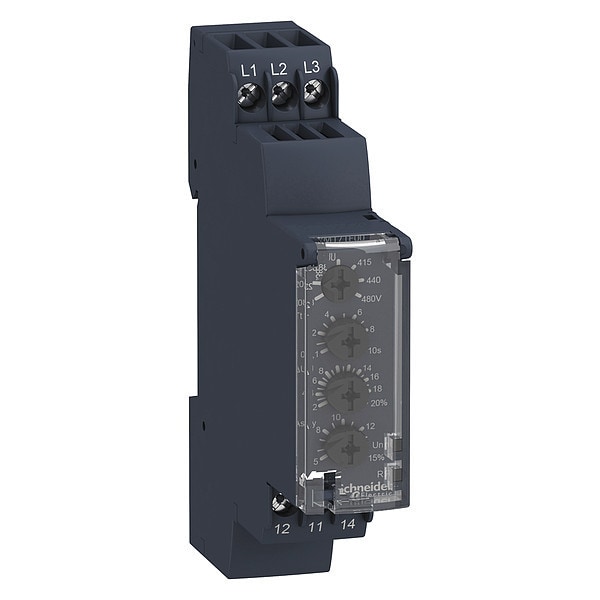

3 Phase Relay 250V 5Amp Rm17
Response Time
< 200 ms (in the event of a fault)
Measurement Accuracy
+/- 10 % of the full scale value
Electromagnetic Compatibility
emission standard for industrial environments EN/IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || immunity for industrial environments NF EN/IEC 61000-6-2
Voltage Detection Threshold
183 V
Ambient Air Temperature For Operation
-20-50°C
Dielectric Test Voltage
2 kV AC 50 Hz, 1 min
Functionality
overvoltage and undervoltage detection
Relay Monitored Parameters
overvoltage and undervoltage between phases
Electrical Durability
100000 cycles
Contacts Type And Composition
1 C/O
Ambient Air Temperature For Storage
-40-70°C
Shock Resistance
5 gn IEC 60068-2-27
Minimum Switching Current
10 mA 5 V DC
Relay Type
voltage control relay
Operating Position
any position without derating
Maximum Switching Voltage
250 V AC/DC
[Ui] Rated Insulation Voltage
400 V IEC 60664-1
Insulation Resistance
> 500 MOhm 500 V DC IEC 60255-5 || > 500 MOhm 500 V DC IEC 60664-1
Ip Degree Of Protection
IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
Reset Time
1500 ms time delay
Supply Voltage Limits
183-528 V AC
Power Consumption In Va
0-22 VA 400 V AC 50 Hz
Utilisation Category
AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || DC-14 IEC 60947-5-1
Product Specific Application
for 3-phase supply
Product Certifications
GOST || UL || GL || C-tick || CSA
Vibration Resistance
0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1
Mounting Support
35 mm symmetrical DIN rail conforming to EN/IEC 60715
Operating Rate
<= 360 operations/hour full load
Mechanical Durability
30000000 cycles
Relative Humidity
95-95 % 55-55°C IEC 60068-2-30
Non-Dissipating Shock Wave
4 kV
Measurement Error
< 1 % over the whole range with voltage variation || 0.05 %/°C with temperature variation
Overvoltage Category
III IEC 60664-1
Local Signalling
for power ON LED (green) || for relay ON LED (yellow)
Product Or Component Type
voltage control relay
Measurement Range
183...528 V voltage AC
Connections - Terminals
screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...2 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
Nominal Output Current
5A
Switching Capacity In Va
1250 VA
[Us] Rated Supply Voltage
208...480 V AC 50/60 Hz +/- 10 %
Tightening Torque
0.6-1 N.m IEC 60947-1
Maximum Measuring Cycle
150 ms measurement cycle as true rms value
Control Circuit Frequency
50...60 Hz +/- 10 %
Repeat Accuracy
+/- 0.5 % input and measurement circuit || +/- 1 % time delay
Run-Up Delay At Power-Up
650 ms
Pollution Degree
3 IEC 60664-1
Time Delay Type
adjustable 0.3...30 s, 0 + 10 % on crossing the threshold
Housing Material
self-extinguishing plastic
Maximum Switching Current
5 A AC/DC
Threshold Adjustment Voltage
2...20 % of Un selected, -2...-17 % in the range 220 V AC, +2...+10 % in the range 480 V AC, -2...-12 % in the range 208 V AC
Control Type
without test button
Range of Product
Harmony Control Relays
