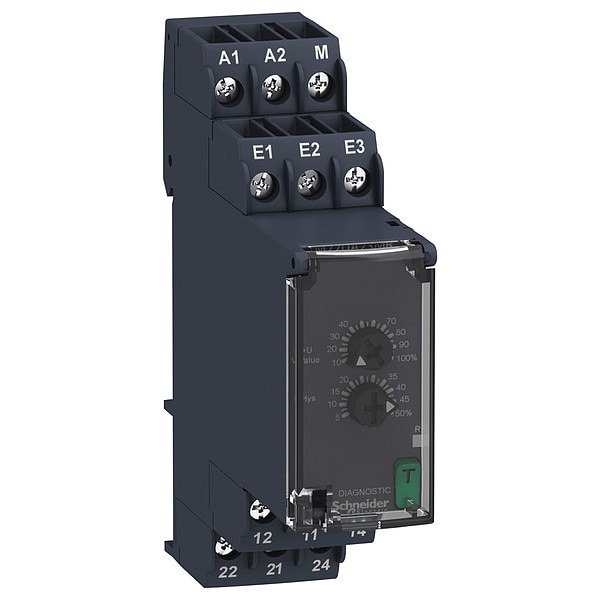

- Item - Relay
- Voltage Sensing Relay
- Input or Control Voltage
- 24 to 240V AC/DC
- AC Contact Rating - Relay
- 8A @ 24/240V
- Number of Pins - Relay
- 6
- Mounting - Relay
- DIN Rail
- Pick Up Range
- 20.4 to 264V AC/DC
- Drop-Out Range
- +/- 10%
- Input Voltage
- 24 to 240V AC/DC
- Phase
- 1 phase
- Item
- Voltage Sensing Relay
- Weight
- 0.11 kg
- Monitored Parameters
- Overvoltage
- Maximum Switching Current
- 8 A
- Current Rating
- 8 A
- Mechanical Operating Durability
- 10,000,000
- Contact Rating (AC)
- 8 A @ 24/240V
- Minimum Switching Current
- 10 mA
- Number of Pins
- 12
- Maximum Operating Temperature
- 158 Degrees F
- Maximum Switching Capacity
- 2,000 VA
- Mounting Style
- DIN Rail
- Maximum Switching Voltage
- 250V AC
- Power Consumption
- 3.5 VA
- Standards
- CCC, CE Certified, CSA Certified, EAC, EN/IEC 60255-1, GL, RCM, UL Listed
- IP Rating
- IP20; IP40; IP50
- Base Shape
- Square
- Minimum Operating Temperature
- -40 Degrees F
- Utilisation Category
- AC-15 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || AC-1 IEC 60947-4-1 || DC-1 IEC 60947-4-1
- Supply Circuit Type
- DC
- Electromagnetic Compatibility
immunity for residential, commercial and light-industrial environments EN/IEC 61000-6-1 || immunity for industrial environments EN/IEC 61000-6-2 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || emission standard for industrial environments EN/IEC 61000-6-4 || electrostatic discharge 6 kV contact discharge)level 3 IEC 61000-4-2 || electrostatic discharge 8 kV air discharge)level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test 10 V/mlevel 3 IEC 61000-4-3 || electrical fast transient/burst immunity test 4 kV direct)level 4 IEC 61000-4-4 || electrical fast transient/burst immunity test 2 kV capacitive coupling)level 4 IEC 61000-4-4 || surge immunity test 4 kV common mode)level 4 IEC 61000-4-5 || surge immunity test 2 kV differential mode)level 4 IEC 61000-4-5 || conducted and radiated emissionsclass B group 1 CISPR 11 || conducted and radiated emissionsclass B CISPR 22
- Mechanical Durability
- 10000000 cycles
- Electrical Durability
- 100000 cycles
- Product Certifications
- CE || CCC || GL || RCM || UL || EAC || CSA
- Overvoltage Category
- III IEC 60664-1
- Ambient Air Temperature For Operation
- -20-50°C 60 Hz || -20-60°C 50 Hz
- Contacts Type And Composition
- 2 C/O
- Reset Time
- 1500 ms at maximum voltage
- Compatibility Code
- RM22
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- Mounting Support
- 35 mm DIN rail conforming to EN/IEC 60715
- Shock Resistance
- 15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
- Ip Degree Of Protection
- IP20 IEC 60529 terminals) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)
- Immunity To Microbreaks
- 10 ms
- Vibration Resistance
- 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 || 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 || 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 || 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
- Pollution Degree
- 3 IEC 60664-1
- Insulation
- between supply and measurement
- [Uimp] Rated Impulse Withstand Voltage
- 5 kV 1.2/50µs IEC 60255-27
- Resistance Across Terminals
- 150 kOhm E2-M terminals || 300 kOhm E1-M terminals || 500 kOhm E3-M terminals
- Response Time
- <= 500 ms
- Repeat Accuracy
- +/- 0.5 % input and measurement circuit
- Measurement Error
- < 1 % over the whole range with voltage variation || 0.05 %/°C with temperature variation
- [Ui] Rated Insulation Voltage
- 250 V IEC 60664-1
- Maximum Power Consumption In W
- 1.5 W DC
- [Us] Rated Supply Voltage
- 24...240 V AC/DC 50/60 Hz
- Ambient Air Temperature For Storage
- -40-70°C
- Relay Name
- RM22UA
- Run-Up Delay At Power-Up
- 600 ms
- Dielectric Test Voltage
- 2.5 kV AC 50 Hz, 1 min IEC 60255-27
- Switching Capacity In Va
- 2000 VA
- Contacts Material
- cadmium free
- Output Contacts
- 2 C/O
- Relative Humidity
- 93-97 % 25-55°C IEC 60068-2-30
- Housing Material
- self-extinguishing plastic
- Relay Monitored Parameters
- overvoltage detection
- Connections - Terminals
screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
- Measurement Range
- 15...500 V voltage AC/DC 50/60 Hz
- Insulation Resistance
- > 100 MOhm 500 V DC
- Hysteresis
- 5-50 % adjustable threshold setting
- Power Consumption In Va
- 3.5-3.5 VA AC
- Product Or Component Type
- voltage control relay
- Maximum Measuring Cycle
- 100 ms measurement cycle as true rms value
- Relay Type
- voltage control relay
- Time Delay Type
- without
- Supply Voltage Limits
- 20.4-264 V AC/DC
