This item is Discontinued.

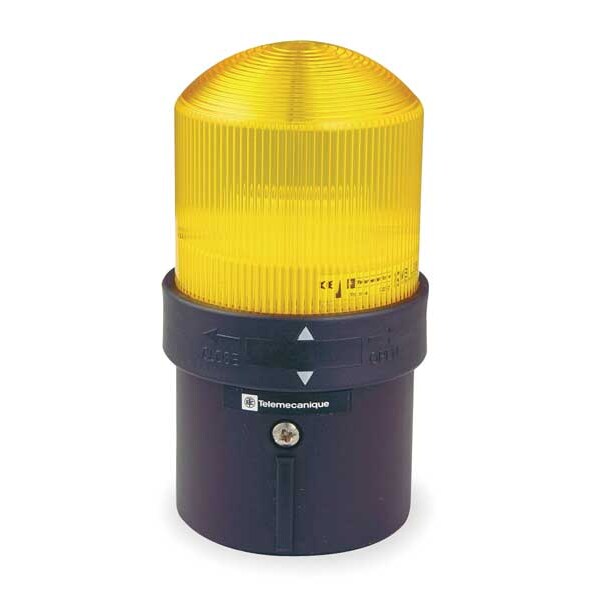

Schneider Electric Warning Light, LED, Yellow, 24VAC/24-48VDC XVBL4B8

Warning Light, LED, Yellow, 24VAC/24-48VDC (Discontinued)

  • Mfr # XVBL4B8
  • Zoro # G2076435
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XVBL4B8
Zoro #
G2076435
UPC #
785901844235
Country of Origin
Czechia

Dimensions

Height
5 1/2 in
Diameter
2 3/4 in
Overall Depth
5 15/32 in
Overall Diameter
2 3/4 in

Details

Item
Warning Light W/O Lamp
Color
Yellow
Lamp Type
LED
Power Source
Wire
Lens Material
Polycarbonate
Flashes per Minute
60
Housing Material
Glass Reinforced Polyamide
Standards
CCC, CSA C22.2 No. 14, EAC, EN/IEC 60947-5-1, RoHS, UL 508
Features
Dust Resistant, Impact Resistant
Voltage
24V AC/24 to 48V DC
Current Drawn
1300mA AC/850mA DC
Rating
IP65, NEMA 1, 4X, 12
Mounting
Surface
Lens Design
Screw-on Dome
Operating Temp.
-40 Degrees to 158 Degrees F
Light Output
7W
Product Type
Indicator Light
Connection Type
Screw Terminal
NEMA Rating
NEMA 4X
Control Protocol
Direct Wire
Light Source
LED
Operating Temperature - Maximum
158 Degrees F
IP Rating
IP65, IP66
Mounting Style
Surface Mount
Lens Color
Yellow
For Location
Indoor
Wattage
7 W
Operating Current
0.850 A @ 24 to 48V DC, 1.300 A @ 24V AC
Water Resistance
Water Resistant
Light Operating Mode
Flashing
Operating Temperature - Minimum
-40 Degrees F
Vibration
No Vibration
Lens Shape
Dome
Lamp Color
Yellow

Description

Warning Light W/O Lamp, Color Yellow, Lamp Type LED, Flashes per Minute 60, Light Output 7W, Lens Design Screw-on Dome, Lens Material Polycarbonate, Housing Material Glass Reinforced Polyamide, Mounting Surface, Operating Temp. -40 Degrees to 158 Degrees F, Rating IP65, NEMA 1, 4X, 12, Power Source Wire, Current Drawn 1300mA AC/850mA DC, Height 5 1/2 in, Voltage 24V AC/24 to 48V DC
