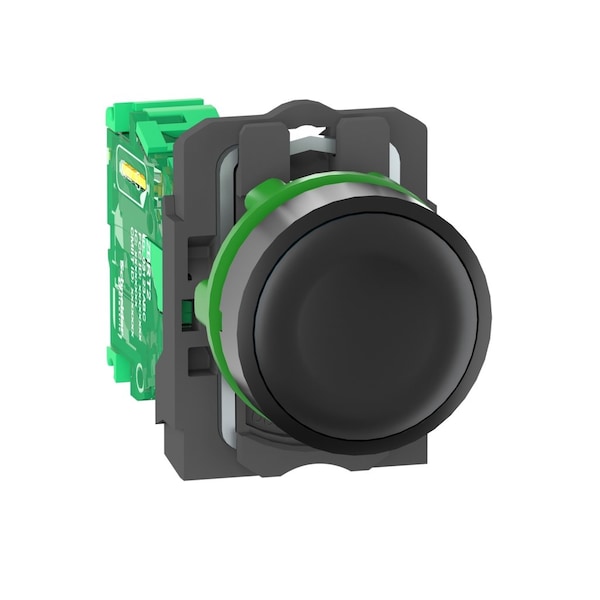

Schneider Electric Wireless Push Button Transmitter, Flush, Momentary Action, Not Applicable Release, Non-Illuminated ZB5RTA2 - main

Wireless Push Button Transmitter, Flush, Momentary Action, Not Applicable Release, Non-Illuminated

  • Mfr # ZB5RTA2

  • Zoro # G4002564

product price: $125.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
Black
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5RTA2
Zoro #
G4002564
UPC #
785901694793
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Height
1.3 in
Size
22 mm
Length
2.05 in
Width
3.39 in
Length (Straight Wireway)
2.05 in
Bandwidth
5-5 MHz
Embedding Depth
42 mm
Cad Overall Height
41.5 mm
Cad Overall Width
30 mm
Cad Overall Depth
43 mm
Mounting Diameter
22 mm
Overall Height
1.62 in
Overall Depth
2.05 in
Manufacturer Warranty Length
18 mo
Overall Width
1.17 in

Details

Item
Wireless Push Button Transmitter
Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Black
Head Material
Plastic
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, UL 508
Type of Operator
Flush Push Button
Legend Markings
No Legend
NEMA Rating
12
Number of Operators
1
Color
Black
IP Rating
IP30
Material
Plastic
Series
XB5R
Legend
None
Bezel Material
dark grey plastic
Mechanical Robustness
free fall resistance 1000 mm EN/IEC 60068-2-32
Product Certifications
BT 2006/95/EC || C-tick || CSA || UL || CCC || GOST
Electrical Composition Code
PW1
Station Name
XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs
Product Or Component Type
wireless and batteryless transmitter
Level Or Class
5M00G7W
Operator Profile
black flush
Antenna Gain
0 dBi
Acquisition Time
2 ms
Ambient Air Temperature For Operation
-40-70°C
Response Time
< 2 ms
Transmission Frequency
2405 MHz
Fixing Collar Material
plastic
Ik Degree Of Protection
IK03 IEC 50102
Operating Travel
4.3 mm total travel)
Relative Humidity
95-95 % -40-70°C without condensation
Fixing Mode
fixing nut beneath head 2-2.4 N.m
Operating Force
10 N C/O changing electrical state
Shock Resistance
25 gn 6 ms) 6000 shocks IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Antenna Type
omnidirectional
Emission Power
3 mW
Max Power Consumption In W
1 mW
Device Short Name
XB5R
Vibration Resistance
5 gn 11-500 Hz)IEC 60068-2-6 || +/- 10 mm 2-11 Hz)IEC 60068-2-6
Number Of Channels
16
Communication Port Protocol
Zigbee green power 2.4 GHz IEEE 802.15.4
Modulation Technique
O-QPSK
Ip Degree Of Protection
IP66 IEC 60529 front face) || IP67 IEC 60529 front face) || IP69 IEC 60529 front face) || IP69K IEC 60529 front face)
Shape Of Signaling Unit Head
round
Maximum Sensing Distance
100 m in free field || 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure || 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
Mechanical Durability
1000000 cycles
Radio Agreement
ANATEL || ARIB T66 || FCC || ICASA || RSS
Ambient Air Temperature For Storage
-40-70°C
Electromagnetic Compatibility
electrostatic discharge immunity test 8 kV in free air (in insulating parts)) IEC 61000-4-2 || electrostatic discharge immunity test 4 kV on contact (on metal parts)) IEC 61000-4-2 || susceptibility to electromagnetic fields 20 V/m 80 to 3000 MHz) IEC 61000-4-3 || susceptibility to electromagnetic fields 6 V/m 3000 to 6000 MHz, distance = 20 m) IEC 61000-4-3
Operating Temperature - Maximum
158 Degrees F
NEMA Enclosure Rating
12
Operator Material
Plastic
Mechanical Operating Durability
1,000,000
Resistance Properties
Shock Resistant, Vibration Resistant
Operating Temperature - Minimum
-40 Degrees F

Description

Wireless Push Button Transmitter, Color Black, Action Momentary, Material Plastic, NEMA Rating 12, IP Rating IP30, Number of Operators 1, Size 22 mm, Type of Operator Flush Push Button, Height 1.3 in, Width 3.39 in, Length 2.05 in, Legend Markings No Legend, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, UL 508
