  15. Wireless Push Button Transmitter, Flush, Momentary Action, Not Applicable Release, Non-Illuminated

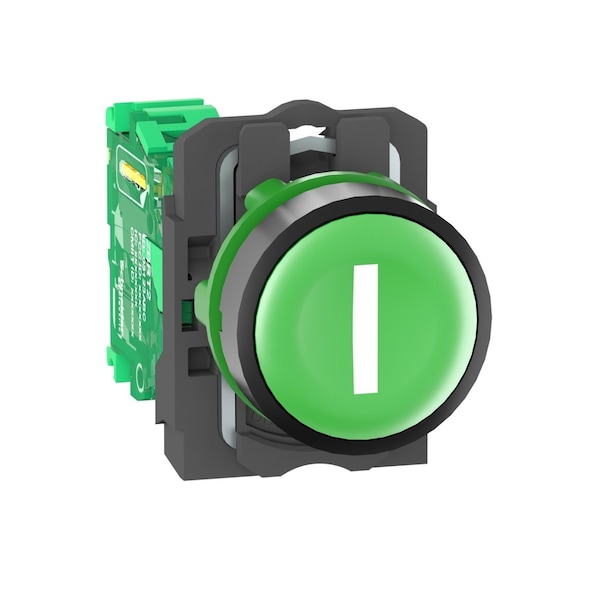

Schneider Electric Wireless Push Button Transmitter, Flush, Momentary Action, Not Applicable Release, Non-Illuminated ZB5RTA331 - main

Wireless Push Button Transmitter, Flush, Momentary Action, Not Applicable Release, Non-Illuminated

  • Mfr # ZB5RTA331

  • Zoro # G3950493

product price: $125.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
Green
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5RTA331
Zoro #
G3950493
UPC #
785901694953
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Length
2.05 in
Width
3.39 in
Size
22 mm
Height
1.3 in
Length (Straight Wireway)
2.05 in
Bandwidth
5-5 MHz
Embedding Depth
42 mm
Cad Overall Depth
43 mm
Cad Overall Height
41.5 mm
Mounting Diameter
22 mm
Cad Overall Width
30 mm
Overall Width
1.17 in
Overall Depth
2.05 in
Manufacturer Warranty Length
18 mo
Overall Height
1.62 in

Details

Item
Wireless Push Button Transmitter
Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Green
Head Material
Plastic
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, UL 508
Material
Plastic
IP Rating
IP30, IP65
Legend Markings
I
Number of Operators
1
Color
Green
NEMA Rating
12
Type of Operator
Flush Push Button
Bezel Material
dark grey plastic
Legend
I
Series
XB5R
Modulation Technique
O-QPSK
Shape Of Signaling Unit Head
round
Antenna Gain
0 dBi
Station Name
XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs
Device Short Name
XB5R
Operating Travel
4.3 mm total travel)
Max Power Consumption In W
1 mW
Maximum Sensing Distance
100 m in free field || 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure || 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
Ambient Air Temperature For Operation
-40-70°C
Operating Force
10 N C/O changing electrical state
Electrical Composition Code
PW1
Relative Humidity
95-95 % -40-70°C without condensation
Radio Agreement
ANATEL || ARIB T66 || FCC || ICASA || RSS
Product Or Component Type
wireless and batteryless transmitter
Mechanical Durability
1000000 cycles
Level Or Class
5M00G7W
Shock Resistance
25 gn 6 ms) 6000 shocks IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Transmission Frequency
2405 MHz
Emission Power
3 mW
Vibration Resistance
5 gn 11-500 Hz)IEC 60068-2-6 || +/- 10 mm 2-11 Hz)IEC 60068-2-6
Response Time
< 2 ms
Operator Profile
green flush, I white)
Fixing Mode
fixing nut beneath head 2-2.4 N.m
Product Certifications
CCC || UL || BT 2006/95/EC || CSA || C-tick || GOST
Number Of Channels
16
Fixing Collar Material
plastic
Antenna Type
omnidirectional
Ambient Air Temperature For Storage
-40-70°C
Communication Port Protocol
Zigbee green power 2.4 GHz IEEE 802.15.4
Mechanical Robustness
free fall resistance 1000 mm EN/IEC 60068-2-32
Ip Degree Of Protection
IP66 IEC 60529 front face) || IP67 IEC 60529 front face) || IP69 IEC 60529 front face) || IP69K IEC 60529 front face)
Acquisition Time
2 ms
Electromagnetic Compatibility
electrostatic discharge immunity test 8 kV in free air (in insulating parts)) IEC 61000-4-2 || electrostatic discharge immunity test 4 kV on contact (on metal parts)) IEC 61000-4-2 || susceptibility to electromagnetic fields 20 V/m 80 to 3000 MHz) IEC 61000-4-3 || susceptibility to electromagnetic fields 6 V/m 3000 to 6000 MHz, distance = 20 m) IEC 61000-4-3
Ik Degree Of Protection
IK03 IEC 50102
Operating Temperature - Minimum
-40 Degrees F
Mechanical Operating Durability
1,000,000
Operating Temperature - Maximum
158 Degrees F
Resistance Properties
Shock Resistant, Vibration Resistant
Operator Material
Plastic
NEMA Enclosure Rating
12
Legend Color
White

Description

Wireless Push Button Transmitter, Color Green, Action Momentary, Material Plastic, NEMA Rating 12, IP Rating IP30, IP65, Number of Operators 1, Size 22 mm, Type of Operator Flush Push Button, Height 1.3 in, Width 3.39 in, Length 2.05 in, Legend Markings I, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, UL 508
