  9. WirelessHandyBoxKit, 0.87inMastDia, Black

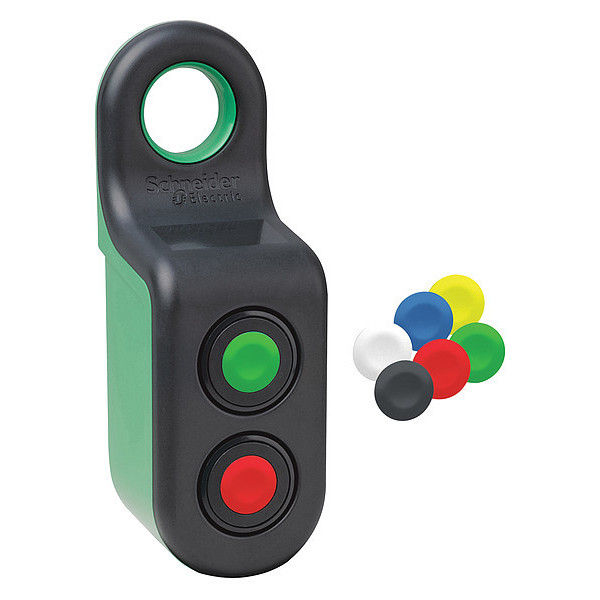

Schneider Electric WirelessHandyBoxKit, 0.87inMastDia, Black ZBRM22B0 - main

WirelessHandyBoxKit, 0.87inMastDia, Black

  • Mfr # ZBRM22B0

  • Zoro # G8713675

product price: $255.99
/ea
Free Shipping & Returns

Key Features

Material
Plastic
Color
Green
Features
Wireless, No Battery Needed, Handy Box With 2 Double Action Buttons
Standards
UL 508, EN/IEC 60947-1, EN/IEC 60947-5-1, CSA C22.2 No 14
For Use With
ZBRT2 Wireless Transmitter, Mobile and Static Applications
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZBRM22B0
Zoro #
G8713675
UPC #
785901774372
Country of Origin
France

Dimensions

Mast Diameter
0.87"
Overall Length
6.42"
Mounting Diameter
22 mm

Details

Item
Wireless Handy Box
Material
Plastic
Color
Green
Features
Wireless, No Battery Needed, Handy Box With 2 Double Action Buttons
Standards
UL 508, EN/IEC 60947-1, EN/IEC 60947-5-1, CSA C22.2 No 14
For Use With
ZBRT2 Wireless Transmitter, Mobile and Static Applications
Power Rating
3mW
Ik Degree Of Protection
IK03 IEC 50102
Ambient Air Temperature For Operation
-25-55 °C
Type Of Operator
spring return push-button with transmitter
Acquisition Time
2 ms
Ip Degree Of Protection
IP65 IEC 60529 front face) || IP65 UL Type 12 front face)
Electromagnetic Compatibility
electrostatic discharge immunity test 8 kV in free air (in insulating parts)) IEC 61000-4-2 || electrostatic discharge immunity test 4 kV on contact (on metal parts)) IEC 61000-4-2 || susceptibility to electromagnetic fields 20 V/m 80...3000 MHz) IEC 61000-4-3 || susceptibility to electromagnetic fields 6 V/m 3000...6000 MHz, distance = 20 m) IEC 61000-4-3
Kit Composition
1 set of caps || 1 handy box || 2 transmitter || 2 push-button head 22 mm || 2 fixing collars
Operator Additional Information
set of caps
Response Time
< 2 ms
Vibration Resistance
5 gn 11-500 Hz)IEC 60068-2-6 || +/- 10 mm 2-11 Hz)IEC 60068-2-6
Communication Port Protocol
Zigbee green power 2.4 GHz
Product Certifications
BT 2006/95/EC || C-tick || EAC || CSA || UL || CCC
Operating Travel
4.3 mm total travel)
Product Or Component Type
wireless and batteryless transmitter
Fixing Collar Material
plastic
Ambient Air Temperature For Storage
-40-70 °C
Shape Of Signaling Unit Head
round
Shock Resistance
25 gn 6 ms) 6000 shocks IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Maximum Sensing Distance
100 m in free field || 25 m transmitter in the handy box and receiver in a metal enclosure || 300 m transmitter in the handy box, receiver in metal enclosure and use relay-antenna
Operator Profile
flush
Operating Force
25 N C/O changing electrical state
Relative Humidity
95-95 % 70-70 °C without condensation
Contact Operation
2 double action UP/DOWN push-buttons
Emission Power
3 mW
Mechanical Robustness
free fall resistance 1000 mm EN/IEC 60068-2-32
Mechanical Durability
400000 cycles
Bezel Material
plastic
Compatible with Manufacturer Model Number
ZBRT2
Compatible with Series
XB5R
Compatible Product Type
Mobile and Static Applications, Wireless Transmitters
Compatible Manufacturer Part Number
ZBRT2
Compatible Manufacturer Model Number
ZBRT2
Compatible with Manufacturer Model No.
ZBRT2
Compatible with Mfr. Model No.
ZBRT2
For Use with Mfr Model Number
ZBRT2
For Use With Mfr. Model Number
ZBRT2
Compatible Pump Manufacturer Part Number
ZBRT2
Compatible Mfr. Model Number
ZBRT2

Description

Wireless Handy Box Kit, For Use With Mobile and Static Applications, ZBRT2 Wireless Transmitter, Features 2 Push-Button Heads, 2 Transmitters with Maintained Action, Plastic Handy Box, Set of 6-Colored Push-Button Caps

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
