  9. Power Inverter, Modified Sine Wave, 1,520 W Peak, 760 W Continuous, 2 Outlets

This item is Discontinued.

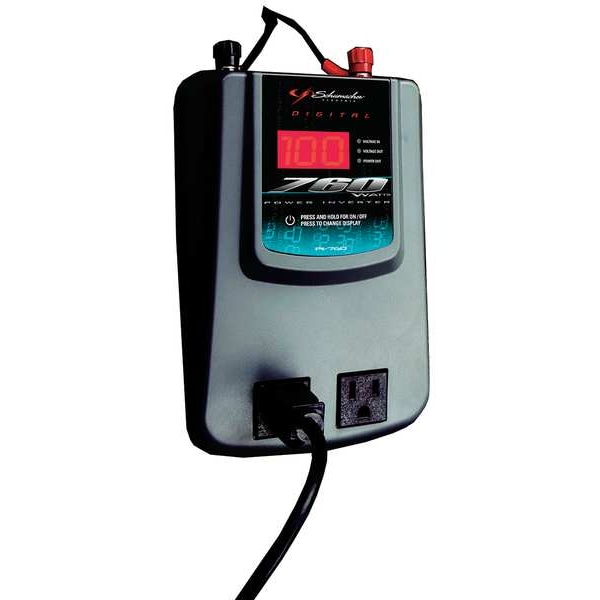

Schumacher Electric Power Inverter, Modified Sine Wave, 1,520 W Peak, 760 W Continuous, 2 Outlets PID760

Power Inverter, Modified Sine Wave, 1,520 W Peak, 760 W Continuous, 2 Outlets (Discontinued)

  • Mfr # PID760
  • Zoro # G3484205
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PID760
Zoro #
G3484205
UPC #
026666708944
Country of Origin
China

Dimensions

Depth
3-1/2"
Width
10"
Height
13"
Overall Width
4 in
Overall Height
2 1/4 in
Overall Depth
8 1/2 in

Details

Item
Power Inverter
Peak Output Power
1,520 W
Continuous Output Power
760 W
Inverter Output Form
Modified Sine Wave
Inverter Input Voltage
10.5 to 15.5V DC
Inverter Output Voltage
115V AC
Outlet Type
Standard 3-Prong Outlet
DC Connection
Input Terminals
Number of Outlets
2
Nominal Output Power
760 W
Case Material
Molded High Impact Plastic
Standards
ETL
Includes
Clamp Adapter, DC Adapter
Power Factor
85 %
Features
Built-In High-Speed Cooling Fan, Digital Display, Low Battery Alarm, On/Off Switch, Surge Protection, Thermal Protection
Application
Laptops, Radios, Video Games
Inveter Output Voltage
120V +/- 5% AC
Output Frequency
60 Hz
Minimum Operating Temperature
50 Degrees F
Input Connection
Clamps, Plug
Phase
Single Phase
Efficiency
85 %
NEMA Rating
NEMA 5-15
Maximum Operating Temperature
80 Degrees F
Output Connection
(2) NEMA 5-15
Output Form
Modified Sine Wave
Type of Indicator
LED
Number of USB Ports
1
Fused
Yes
Input Current
10.5 to 15.5V DC
Output Voltage
120V AC
Output Current
2 A
Temperature Rise
Not Rated
Input Voltage
10.5 to 15.5V DC
Number of USB-C Ports
0

Description

Inverter, Features Built-In High-Speed Cooling Fan, Digital Display, Low Battery Alarm, On/Off Switch, Surge Protection, Thermal Protection, Output Form Modified Sine Wave, DC Connection Input Terminals, Continuous Output Power 760 W, Peak Output Power 1,520 W, Number of Outlets 3, Input Voltage 10.5 to 15.5V DC, Output Voltage 120V AC, Output Frequency 60 Hz, Efficiency 85 Percent, Overall Depth 8 1/2 in, Overall Height 2 1/4 in, Overall Width 4 in, Outlet Type (2) NEMA 5-15R
