  11. Dummy Push to Exit Bar, 36 in.W

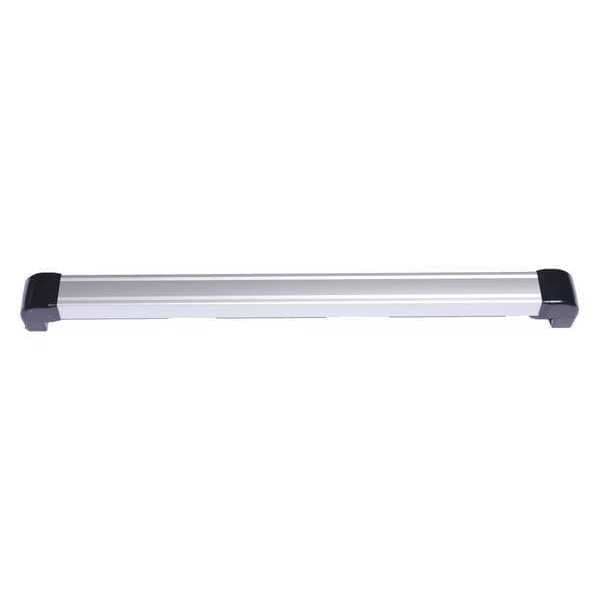

Securitron Dummy Push to Exit Bar, 36 in.W DTSB-CL - main

Dummy Push to Exit Bar, 36 in.W

  • Mfr # DTSB-CL

  • Zoro # G1608805

product price: $242.99
/ea
Free Shipping & Returns

Key Features

Finish
Clear Anodized
Material
Aluminum, Metal, Wood
Color
Gray
Includes
(6) Conductor Cable and Armored Door Cords
Depth
2 3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DTSB-CL
Zoro #
G1608805
UPC #
-
Country of Origin
United States

Dimensions

Depth
2 3/4 in
Width
36 in
Height
3 in
Overall Width
36 in
Overall Height
2 3/4 in
Overall Depth
3 in

Details

Finish
Clear Anodized
Item
Panic Bar
Material
Aluminum, Metal, Wood
Color
Gray
Includes
(6) Conductor Cable and Armored Door Cords
Switch Action
Touchless
Cylinder
No
For Use With
Magnetically Locked, Non-Fire Rated Doors, Indoor Use Only
Rating
2A
Operating Temp.
32 Degrees to 110 Degrees F
Standards
ANSI/UL 294, CE: EN 50091-1, CSA-C22.2 No.205 Listed, CSFM Approved, EN 61000-6-2 Approved
Amps AC
25mA @ 12 or 24VDC
Event Audit Trail
No
Type
Surface Mounted
Keypad
No
Supports Touchless Operation
No
Input Voltage
12 to 24V DC
ADA Compliant
Yes
Power Source
DC Power
Features
Can Be Field Cut to Accommodate Non-Standard Openings Up to 48 in
Supports Operation Type
Push-Button Operation
Operating Temperature - Maximum
110 Degrees F
Includes Hardware
Hardware Not Included
Operation Type
Push
Operation Style
Manual
Mortise/Cylindrical
Mortise
Exit Bar Style
Touchbar
Operating Temperature - Minimum
32 Degrees F
Failure Mode
Fail Secure
Product Type
Panic Bar

Description

Panic Bar, Type Surface Mounted, Switch Action Touchless, Material Aluminum, Metal, Wood, Finish Clear Anodized, Depth 2 3/4 in, Height 3 in, Width 36 in, Color Gray, Rating 2A, Input Voltage 12 to 24V DC, Operating Temp. 32 Degrees to 110 Degrees F, Event Audit Trail No, Keypad No, Cylinder No, Standards ANSI/UL 294, CE: EN 50091-1, CSA-C22.2 No.205 Listed, CSFM Approved, EN 61000-6-2 Approved, For Use With Magnetically Locked, Non-Fire Rated Doors, Indoor Use Only
