  9. Progressive Cavity Pump, SS, 1/2 HP, 115VAC
This item is Discontinued.

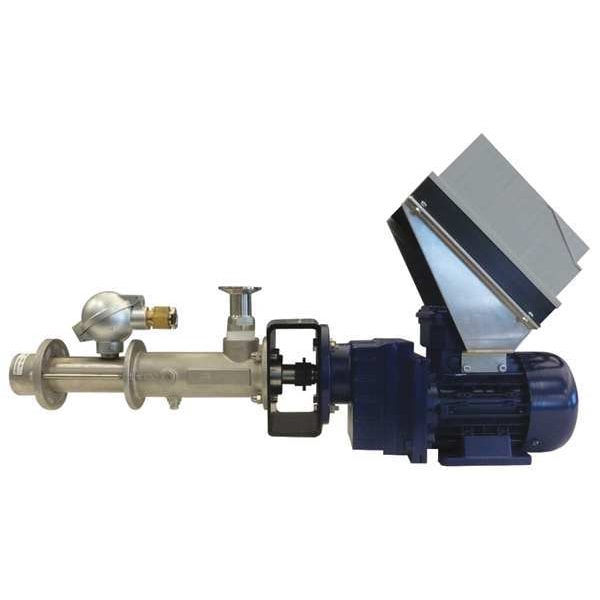

Seepex Progressive Cavity Pump, SS, 1/2 HP, 115VAC MDP 0015-24

Progressive Cavity Pump, SS, 1/2 HP, 115VAC (Discontinued)

  • Mfr # MDP 0015-24
  • Zoro # G8087301
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MDP 0015-24
Zoro #
G8087301
UPC #
-
Country of Origin
Multiple

Dimensions

Height (In.)
11 1/8 in
Width (In.)
7 3/8 in
Length (In.)
25 9/16 in
Particle Size
2.3 mm
Discharge Connection Size
1 1/2 in
Overall Width
7.4 in
Solid Diameter (Maximum)
2.3 mm
Overall Length
25.6 in
Overall Height
11.1 in

Details

Item
Progressive Cavity Metering Pump
Min. RPM
25
Max. RPM
600 RPM
Required HP @ Lower RPM
1/2 hp
Max. Viscosity
40,000 cPs
Series
MDP
Voltage
115V AC
Inlet/Outlet (In.)
1-1/2 NPT
Min. Fluid Temp.
32 Degrees F
Flow Rate @ Min. RPM and 180 PSI
0.0038 gpm
Min. Pressure (PSI)
0
Includes
Variable Speed VFD
Flow Rate @ Min. RPM and 90 PSI
0.0041 gpm
Hz
60
Max. Pressure (PSI)
180 psi
Flow Rate @ Max. RPM and 180 PSI
0.0956 gpm
Required HP @ Higher RPM
1/2 hp
Flow Rate @ Max. RPM and 90 PSI
0.0974 gpm
Application
Metering
Seal Material
PTFE/Ceramic/FPM
Housing Material
Stainless steel
Seal Type
Mechanical
Flow Rate @ Max. RPM and 0 PSI
0.0974 gpm
Max. Fluid Temp.
132 Degrees F
Flow Rate @ Min. RPM and 0 PSI
0.0041 gpm
Media Temperature (Maximum)
132 Degrees F
Media Temperature (Minimum)
32 Degrees F
Motor Speed (Maximum)
600 RPM
Horsepower (Maximum)
1/2 hp
Motor Speed (Minimum)
25 RPM
Frequency
60 Hz
Discharge Connection Type
NPT
Viscosity (Maximum)
40,000 cps
Discharge Port
1 1/2 in NPT

Description

Progressive Cavity Metering Pump, Discharge Connection Size 1 1/2 in, Discharge Connection Type NPT, Housing Material Stainless Steel, Media Temperature (Maximum) 132 Degrees F, Motor Speed (Maximum) 600 RPM, Seal Material PTFE, Viscosity (Maximum) 40,000 cps, Solid Diameter (Maximum) 2.3 mm, Horsepower (Maximum) 1/2 hp, Frequency 60 Hz, Includes Variable Speed VFD, Media Temperature (Minimum) 32 Degrees F, Motor Speed (Minimum) 25 RPM, Overall Height 11.1 in
