  11. Fixture Mount Sensor, Occupancy, Photocell, Hard Wired, White, 1,400 sq ft, Fluorescent, LED

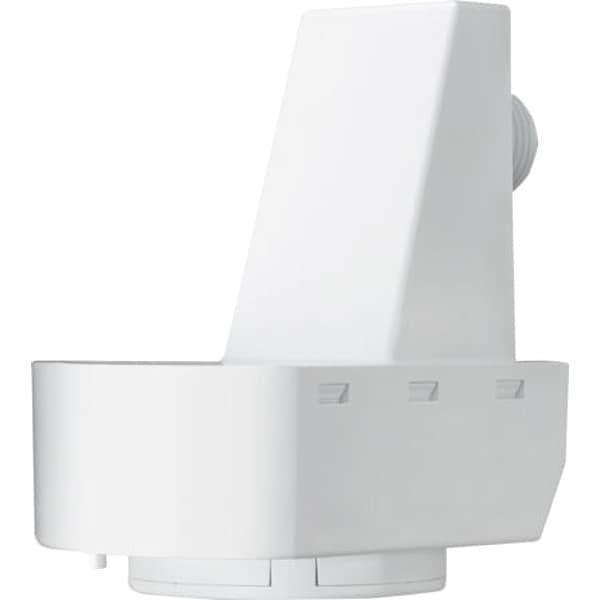

Sensorswitch Fixture Mount Sensor, Occupancy, Photocell, Hard Wired, White, 1,400 sq ft, Fluorescent, LED LSXR 650 - main

Fixture Mount Sensor, Occupancy, Photocell, Hard Wired, White, 1,400 sq ft, Fluorescent, LED

  • Mfr # LSXR 650

  • Zoro # G7534292

product price: $62.49
/ea

Key Features

Sensing Technology
Passive Infrared (PIR)
Time Delay Adjustment Method - Motion Sensor
Adjustable
Time Delay - Motion Sensor
30 sec to 30 min
Lighting Technology
Fluorescent, LED
For Use With
Fluorescent and LED
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LSXR 650
Zoro #
G7534292
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Depth
4 in
Overall Height
3.75 in
Overall Width
2.5 in
Maximum Mounting Height
45 ft

Details

Sensing Technology
Passive Infrared (PIR)
Time Delay Adjustment Method - Motion Sensor
Adjustable
Time Delay - Motion Sensor
30 sec to 30 min
Lighting Technology
Fluorescent, LED
For Use With
Fluorescent and LED
Item
Occupancy Sensor
Color
White
Max. Capacity @ 120VAC
800W (Fluorescent, Induction, LED)
Compatible With
Fluorescent, LED, Induction Fixtures
Coverage Angle - Motion Sensor
360 Degrees
Standards
CA Title 24 Compliant, RoHS Compliant, UL and cUL Listed
Includes
(2) Interchangeable Lenses
Max. Capacity @ 277VAC
1200W (Fluorescent, Induction, LED)
Operating Temp. Range
14 Degrees to 122 Degrees F
Sensor Type
Passive Infrared
Description/Special Features
Interchangeable Lens, Rated for Indoor Use Only
Communication Method
Hard Wired
Wall Plate
Not Included
Series
LSXR
Coverage Type
Large Motion
Installation Location
Fixture Mount
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
14 Degrees F
Load Rating @ 120V AC
800W, Fluorescent, Induction, LED
Manufacturer Warranty
5 yr Limited
Maximum Time Delay
30 min
Coverage Angle
360 Degrees
Maximum Coverage Area
1,400 sq ft
Minimum Time Delay
30 sec
Load Rating @ 277V AC
1,200W (Fluorescent, Induction, LED)
Sensor Operation
Occupancy, Photocell
Mounting Type
Fixture Attached
Networkable Control
Daylight Sensor, Occupancy Sensor
Application Type
Automotive & Parking, Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Power & Gas, Residential, Retail, Roadways, Bridges & Tunnels, Sports and Recreation, Transportation, Warehouses
Voltage Rating
347, 347-480, 480
Finish
Gloss
Control Protocol
0-10V
Compliance Listing
BAA
Environmental Listing
High Humidity
Operating Voltage
120 to 277V AC

Description

Occupancy Sensor, Sensing Technology Passive Infrared (PIR), Operating Voltage 120 to 277V AC, Maximum Coverage Area 1,400 sq ft, Maximum Mounting Height 45 ft, Load Rating @ 120V AC 800W (Fluorescent, Induction, LED), Communication Method Hard Wired, Color White, Includes (2) Interchangeable Lenses, Sensor Operation Occupancy, Lighting Technology Fluorescent, LED, Installation Location Fixture, Standards CA Title 24 Compliant, RoHS Compliant, UL and cUL Listed, Overall Diameter Not Applicable
