10 Inch Heavy Duty Semi Steel Cast Iron Swivel Caster Set with Brakes SCC, 4PK

  • Mfr # SCC-KP92S1030-SSR-SLB-4

  • Zoro # G705437832


product price:  $1,315.99
/pk 4, $329.00/ea
Additional $100.00 delivery surcharge applies per item.
See details

Key Features

Finish
Bright Zinc Plated Finish
Type
(4) swivel casters w/side lock brakes
Material
Semi-Steel
Caster Mounting Type
Top Plate
Caster Swivel Lock Type
Side lock brake
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SCC-KP92S1030-SSR-SLB-4
Zoro #
G705437832
UPC #
670533882543
Country of Origin
United States

Dimensions

Wheel Dia.
10
Mounting Height
12-1/2"
Wheel Width
3
Plate Size
5-1/4" x 7-1/4"
Bolt Size
1/2" (hardware not included)
Size
10" x 3"

Details

Finish
Bright Zinc Plated Finish
Type
(4) swivel casters w/side lock brakes
Material
Semi-Steel
Caster Mounting Type
Top Plate
Caster Swivel Lock Type
Side lock brake
Series
Series #92
Caster Temp. Range
-45 degrees F to 600 degrees F
Capacity (Lb.)
12000
Features
Side lock brake
Plate Caster Bolt Hole Pattern
3-3/8" x 5-1/4" to 4-1/8" x 6-1/8"
Bearing Type
Roller Bearing

Description

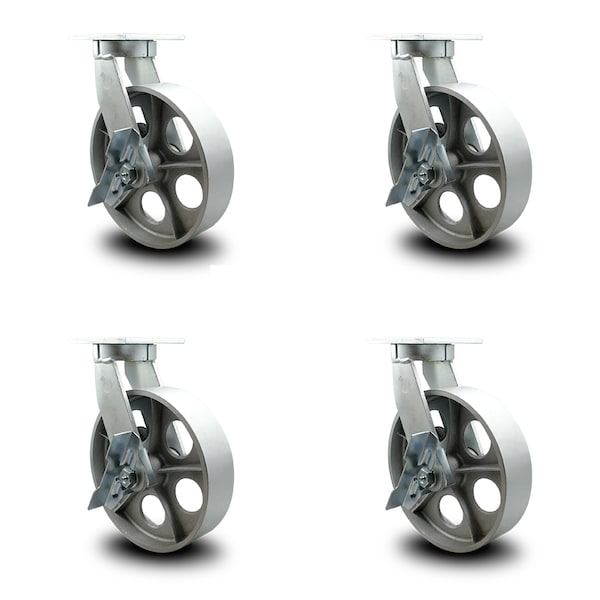

Listing is for a set of four (4) Service Caster Series #92 swivel casters, four (4) swivel casters with side lock brakes, 10" diameter, 3" wide semi steel cast iron wheels. Supports 12000 total pounds (lbs) at 3000 pounds (lbs) per caster. Non Marking/Non Marring. When searching for a reliable and durable solution for extra heavy duty projects in high temperatures, consider Service Caster’s Series 92 top plate semi-steel cast iron casters. Semi-steel cast iron provides a long lasting, high capacity wheel capable of easy rolling under heavy loads. These cast iron based wheels feature a machined hub and wheel face. An economic choice over steel, semi-steel wheels are abrasion resistant and rugged while also having the capability to perform in temperatures up to 600 degrees Fahrenheit. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series 92 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 1⁄2” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series #92 top plate casters are finely crafted with zinc plating, grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 92, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
