12 Inch Heavy Duty Semi Steel Cast Iron Swivel Caster Set with Brakes SCC, 4PK
Mfr # SCC-KP92S1230-SSR-SLB-4
Zoro # G405438764
product price: $1,463.99
/pk 4, $366.00/ea
Free Shipping & Returns
Key Features
Mounting Height
15-1/2"
Plate Size
5-1/4" x 7-1/4"
Capacity (Lb.)
14000
Caster Mounting Type
Top Plate
Caster Swivel Lock Type
Side lock brake
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
SCC-KP92S1230-SSR-SLB-4
Zoro #
G405438764
UPC #
670533882628
Country of Origin
United States
Dimensions
Mounting Height
15-1/2"
Plate Size
5-1/4" x 7-1/4"
Wheel Width
3
Wheel Dia.
12
Size
12" x 3"
Bolt Size
1/2" (hardware not included)
Details
Capacity (Lb.)
14000
Caster Mounting Type
Top Plate
Caster Swivel Lock Type
Side lock brake
Finish
Bright Zinc Plated Finish
Plate Caster Bolt Hole Pattern
3-3/8" x 5-1/4" to 4-1/8" x 6-1/8"
Features
Side lock brake
Series
Series #92
Type
(4) swivel casters w/side lock brakes
Caster Temp. Range
-45 degrees F to 600 degrees F
Material
Semi-Steel
Bearing Type
Roller Bearing
Description

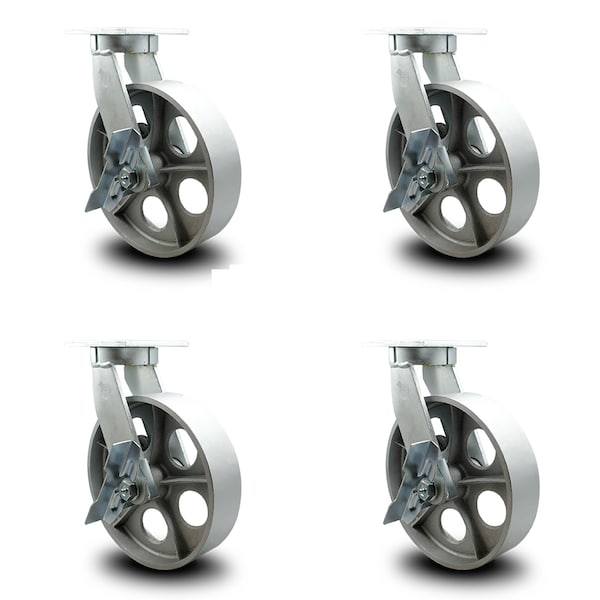

Listing is for a set of four (4) Service Caster Series #92 swivel casters, four (4) swivel casters with side lock brakes, 12" diameter, 3" wide semi steel cast iron wheels. Supports 14000 total pounds (lbs) at 3000 pounds (lbs) per caster. Non Marking/Non Marring. When searching for a reliable and durable solution for extra heavy duty projects in high temperatures, consider Service Caster’s Series 92 top plate semi-steel cast iron casters. Semi-steel cast iron provides a long lasting, high capacity wheel capable of easy rolling under heavy loads. These cast iron based wheels feature a machined hub and wheel face. An economic choice over steel, semi-steel wheels are abrasion resistant and rugged while also having the capability to perform in temperatures up to 600 degrees Fahrenheit. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series 92 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 1⁄2” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series #92 top plate casters are finely crafted with zinc plating, grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 92, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
