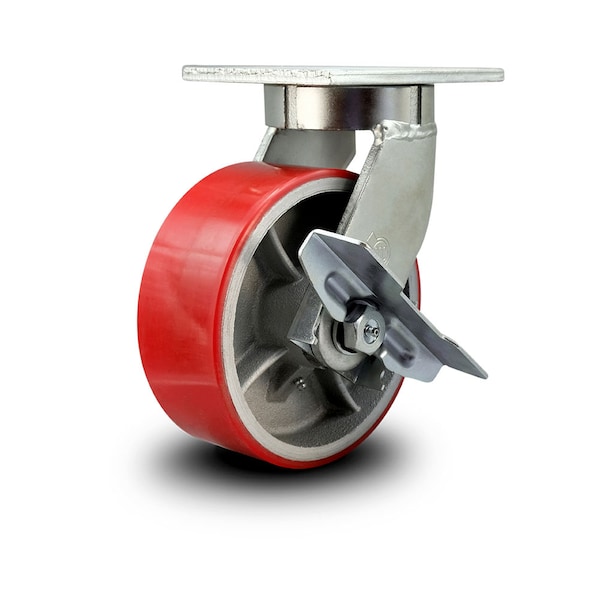

8 Inch Extra Heavy Duty Red Poly on Cast Iron Wheel Swivel Caster with Brake

  • Mfr # SCC-KP92S830-PUR-RS-SLB

  • Zoro # G405434223


product price:  $319.99
/ea
Free Shipping & Returns

Key Features

Plate Size
5-1/4" x 7-1/4"
Finish
Bright Zinc Plated Finish
Plate Caster Bolt Hole Pattern
3-3/8" x 5-1/4" to 4-1/8" x 6-1/8"
Material
Polyurethane Tread on Metal Core
Type
Swivel caster w/side lock brake
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SCC-KP92S830-PUR-RS-SLB
Zoro #
G405434223
UPC #
670533887449
Country of Origin
United States

Dimensions

Plate Size
5-1/4" x 7-1/4"
Wheel Width
3
Mounting Height
10-1/2"
Wheel Dia.
8
Bolt Size
1/2" (hardware not included)
Size
8" x 3"

Details

Finish
Bright Zinc Plated Finish
Plate Caster Bolt Hole Pattern
3-3/8" x 5-1/4" to 4-1/8" x 6-1/8"
Material
Polyurethane Tread on Metal Core
Type
Swivel caster w/side lock brake
Caster Mounting Type
Top Plate
Capacity (Lb.)
2500
Features
Side lock brake
Durometer
95A
Caster Temp. Range
-40 degrees F to 180 degrees F
Caster Swivel Lock Type
Side lock brake
Series
Series #92
Bearing Type
Roller Bearing

Description

Listing is for one (1) Service Caster Series #92 swivel caster with a 8" diameter, 3" wide red polyurethane tread on metal core wheel fitted with a side locking brake. Supports 2500 pounds (lbs) per caster.When searching for a reliable and durable solution for extra heavy duty projects, consider Service Caster’s Series 92 top plate polyurethane on metal wheel casters. The Service Caster Series #92 is ideal for material handling, carts and industrial equipment. The non-marking, non-marring polyurethane tread performs especially well on hard surfaces such as concrete, tile, and wood, while the metal core wheel stands up to heavier loads with a stable and secure roll. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series 92 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 1⁄2” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series #92 top plate casters are finely crafted with zinc plating, grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 92, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
