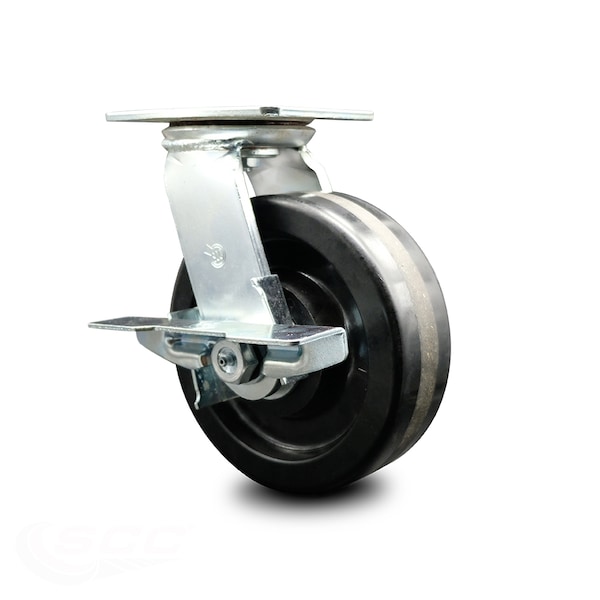

8 Inch Phenolic Wheel Heavy Duty Top Plate Swivel Caster with Brake SCC

  • Mfr # SCC-55S825-PHR-SLB

  • Zoro # G305430578


product price:  $168.99
/ea
Free Shipping & Returns

Key Features

Wheel Width
2.5
Caster Mounting Type
Top Plate
Plate Caster Bolt Hole Pattern
2-7/16" x 4-15/16" to 3-3/8" x 5-1/4"
Caster Swivel Lock Type
Side Lock Brake
Mounting Height
10-1/8"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SCC-55S825-PHR-SLB
Zoro #
G305430578
UPC #
11586608924
Country of Origin
United States

Dimensions

Wheel Dia.
8
Wheel Width
2.5
Mounting Height
10-1/8"
Plate Size
4-1/2" x 6-1/4"
Bolt Size
1/2" (hardware not included)
Size
8" x 2.5"

Details

Caster Mounting Type
Top Plate
Plate Caster Bolt Hole Pattern
2-7/16" x 4-15/16" to 3-3/8" x 5-1/4"
Caster Swivel Lock Type
Side Lock Brake
Durometer
90D
Finish
Bright Zinc Plated Finish
Type
Swivel caster w/side lock brake
Caster Temp. Range
-50 degrees F to 250 degrees F
Material
Phenolic
Series
Series#55
Capacity (Lb.)
1800
Bearing Type
Roller Bearing

Description

Listing is for one (1) Service Caster Series #55 swivel caster with a 8" diameter by 2.5" wide phenolic wheel and a side lock brake capable of supporting 1,800 lbs./caster. When searching for a reliable and durable solution to your caster needs, consider Service Caster Series 55 cold forged casters. The Service Caster Series #55 is ideal for heavy duty platform trucks, welding fixture tables, steel handling carts, tow line carts and power drawn equipment. The cold forged top plate and yoke base is bright zinc plated and treated for long wear and added strength. Wheels come in either phenolic- which are highly resistant to impact damage, providing protection for floors in commercial and industrial settings- or non-marking, non-marring polyurethane tread, which performs especially well on hard surfaces such as concrete, tile, and wood.
