Sharkbite

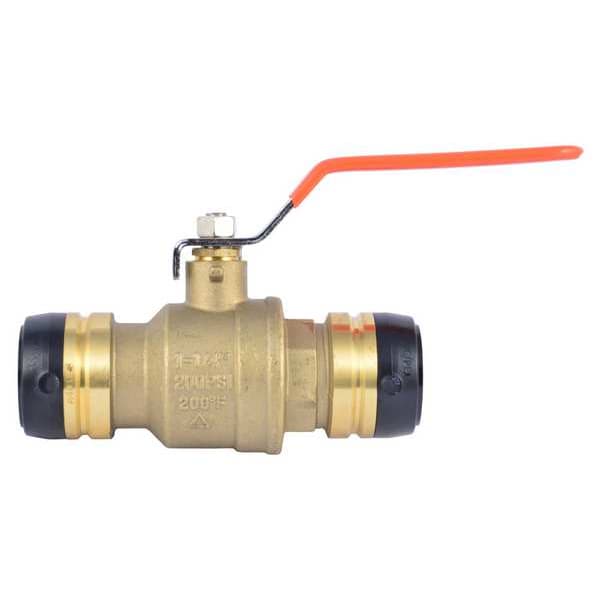

Ball Valve, 1-1/4" Tube Size

product price: $48.89
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size 1 1/4"
  • Body Style Ball Valve
  • Tube Size 1 1/4"
  • Specific Pipe Fitting Shape Ball Valve
  • Gasket Material Polysulfone
See all product information

Product Information

Dimensions

Pipe Size 1 1/4"
Tube Size 1 1/4"
Pipe Size - Pipe Fitting 1-1/4 in
Pipe Size (Fittings) 1-1/4"
Overall Length 4 11/32 in
Fitting Side A Tube Outer Diameter 1 1/4 in
Fitting Side B Tube Outer Diameter 1 1/4 in

Details

Body Style Ball Valve
Specific Pipe Fitting Shape Ball Valve
Gasket Material Polysulfone
Fitting Connection Type Push-Fit
Color Yellow
Special Features No Soldering Needed, Removable, Reusable
Standards AB1953, IAPMO, IGC 157, ISO 6509, NSF372, NSF53
Specific Fitting Shape Ball Valve
Compliance AB1953, IAPMO, IGC 157, ISO 6509, NSF372, NSF53
Pipe Fitting Connection Type Push-Fit
Tube Fitting Material DZR Brass
Temp. Range 20 Degrees to 200 Degrees F
Item Ball Valve
Max. Pressure 200 psi
Application Potable Water
Fitting Material Brass
Fitting Side A Connection Type Push-to-Connect
Includes Pre-Applied Thread Sealant No
Compatible Tube Material Copper, CPVC, HDPE, PEX, Polyethylene
Maximum Operating Pressure 200 psi
System of Measurement Imperial
Maximum Operating Temperature 200 Degrees F
Fitting Side B Connection Type Push-to-Connect
Release Ring Material Polysulfone
Minimum Operating Temperature 20 Degrees F

Description

Ball Valve, Application Potable Water, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Push-to-Connect, Fitting Side A Tube Outer Diameter 1 1/4 in, Fitting Side B Tube Outer Diameter 1 1/4 in, Fitting Material Brass, Color Brass, Includes Pre-Applied Thread Sealant No, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 4 11/32 in, Specific Fitting Shape Ball Valve
