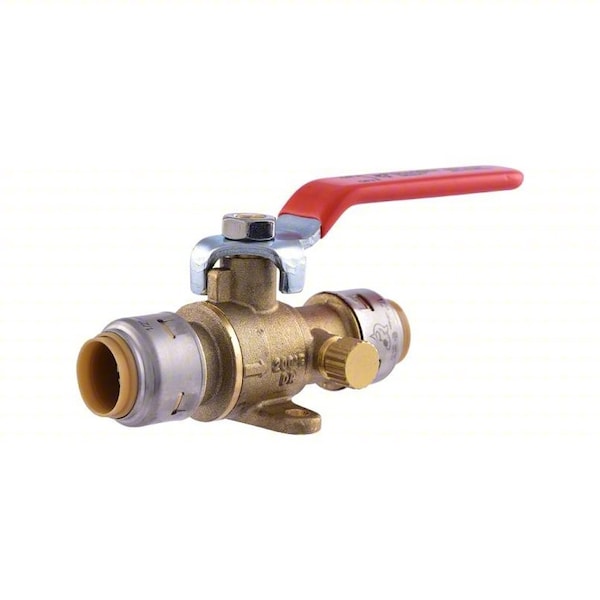

Ball Valve, 2-Way, 5.4 in L, 1/2 in Sz
Mfr # UR24615
Zoro # G422378968
product price:Â
$
28.49
/ea
Key Features
Nominal Valve Size
1/2 in
Maximum Pressure - Operating
400 psi
Ball Port Style
Full Port
Vented Ball Valve
Vented
Valve Construction
Two-Piece
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- UR24615
- Zoro #
- G422378968
- UPC #
- 697285081987
- Country of Origin
- Viet Nam
- Maximum Pressure - Operating
- 400 psi
- Ball Port Style
- Full Port
- Vented Ball Valve
- Vented
- Valve Construction
- Two-Piece
- Seat Material
- PTFE
- Maximum Pressure - Steam
- Not Rated
- Color - Valve Handle
- Orange
- Body Material
- Brass
- Handle - Locking
- Non-Locking
- Item
- Ball Valve
- Handle Material
- Steel
- Maximum Pressure - Combustible Gas
- Not Rated
- Connection Type - Side 2
- Push
- Operating Temperature - Maximum
- 200 Degrees F
- Seal Material
- PTFE
- Operating Temperature - Minimum
- 32 Degrees F
- Valve Body Style
- Straight
- Ball Material
- Chrome-Plated Brass
- For Media
- Water
- Valve Ways
- 2-Way
- Handle Type
- Lever
- Connection Type - Side 1
- Push
- Standards
- ASME A112.4.14/CSA B125.14, NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 374
- Stem Material
- Brass
Description
Ball Valve, Body Material Brass, For Media Water, Valve Construction Two-Piece, Nominal Valve Size 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Applicable, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 400 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Applicable, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Non-Locking, Handle Type Lever
