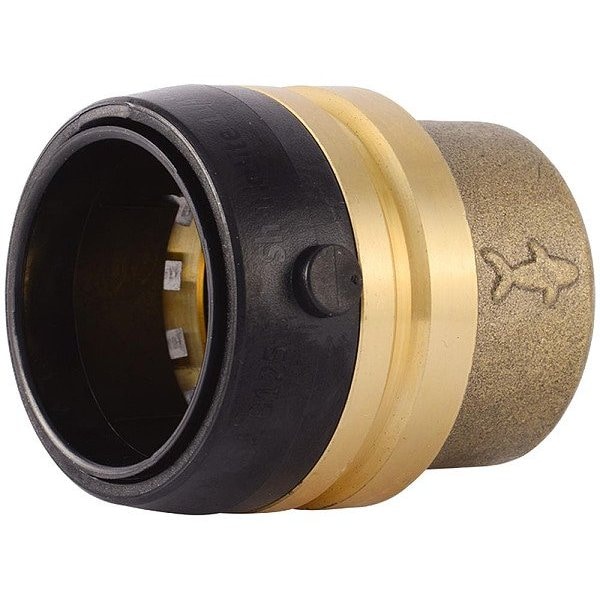

Cap, Brass, Push-to-Connect 1 1/4 in
Mfr # UXL0435
Zoro # G116277942
product price:Â
$
17.59
/ea
Key Features
Fitting Connection Type
Push-to-Connect
Fitting Material
Brass
System of Measurement
Imperial
Standards
ASSE 1061, ASTM E119, ASTM E84, CAN/ULC S101, CAN/ULC S102.2, CSA B125.3, NSF/ANSI/CAN 372, NSF/ANSI/CAN 61, UL 263
Connector Type
Coupling
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- UXL0435
- Zoro #
- G116277942
- UPC #
- 697285039254
- Country of Origin
- China
Dimensions
- Fitting Tube Size Outer Diameter
- 1 1/4 in
- Compatible Copper Tube Size
- 1 1/4 in
- Overall Length
- 11 in
- Wire Rope Length
- 11 in
- Length
- 11 in
Details
- Item
- Push-Fit Fitting Caps and Plug
- Fitting Connection Type
- Push-to-Connect
- Fitting Material
- Brass
- System of Measurement
- Imperial
- Standards
- ASSE 1061, ASTM E119, ASTM E84, CAN/ULC S101, CAN/ULC S102.2, CSA B125.3, NSF/ANSI/CAN 372, NSF/ANSI/CAN 61, UL 263
- Connector Type
- Coupling
- Compatible Tube Material
- Copper, CPVC
- Series
- UXL
- For Media Type
- Potable Water
- Operating Temperature - Maximum
- 200 Degrees F
- Resistance Properties
- Corrosion-Resistant
- Fitting Shape
- Cap
- Material Grade
- 304
- Operating Pressure - Maximum
- 200 psi
- Operating Temperature - Minimum
- 33 Degrees F
- Application
- Climate Control
- Color
- Brass
Description
Push-Fit Fitting Caps and Plug, Application Climate Control, Fitting Connection Type Push-to-Connect, Fitting Material Brass, Fitting Tube Size Outer Diameter 1 1/4 in, Material Grade 304, Overall Length 11 in, Includes Pre-Applied Thread Sealant Not Applicable, Color Brass, Standards ASSE 1061, ASTM E119, ASTM E84, CAN/ULC S101, CAN/ULC S102.2, CSA B125.3, NSF/ANSI/CAN 372, NSF/ANSI/CAN 61, UL 263, Compatible Copper Tube Size 1 1/4 in, Compatible Tube Hardness Not Applicable
