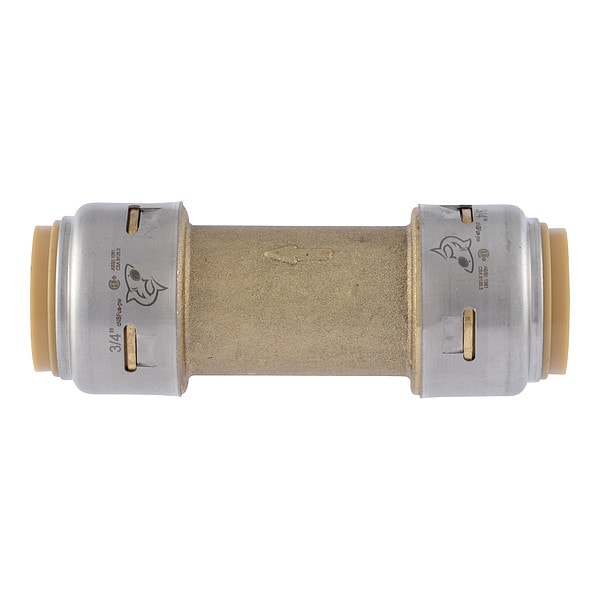

Check Valve, Push x Push, Brass, 3.5 in

  • Mfr # UR2016

  • Zoro # G210481856

product price:
$
25.19
/ea

Key Features

Connection Type
Push x Push
Body Material
Brass
Seat Material
Brass
Body Material - Valves
Brass
Standards
ANSI 14, ANSI 372, ASSE 1061, ASTM E84, ASTM El19, CAN/ULC 5101, CAN/ULC 5102.2, CSA B125.3, UL 263
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
UR2016
Zoro #
G210481856
UPC #
-
Country of Origin
Australia

Dimensions

Pipe or Tube Size
3/4 in
Overall Length
3.5 in
Nominal Valve Size
3/4 in
Connection Size - Side 1
3/4 in
Connection Size - Side 2
3/4 in
Wire Rope Length
3.5 in
Length
3.5 in

Details

Connection Type
Push x Push
Body Material
Brass
Seat Material
Brass
Body Material - Valves
Brass
Standards
ANSI 14, ANSI 372, ASSE 1061, ASTM E84, ASTM El19, CAN/ULC 5101, CAN/ULC 5102.2, CSA B125.3, UL 263
Max. Water Pressure - Valves
250 psi
Item
Check Valve
Item - Check Valves
Check Valve
Flow Design
Single
Mechanism and Body Design
Inline Spring
Max. Temp. - Valves
200 Degrees F
3-A Standard Compliance
Not Rated
Maximum Pressure - Steam
Not Rated
Silent Check
Standard
Valve Body Style
Inline
Includes Counterweight
No Counterweight
Operating Temperature - Maximum
200 Degrees F
Vacuum Service Rating
Not Rated
Connection Type - Side 1
Push
NSF Certifications for Food and Drinking Water
NSF 61
Maximum Pressure - Operating
400 psi
Operating Temperature - Minimum
40 Degrees F
For Media
Direct Burial, Hydronic Heating/Cooling, Potable Water, Recirculation
Connection Type - Side 2
Push
Mounting Orientation
Horizontal, Vertical

Description

The SHARKBITE UR2016 is a 3/4 in inline check valve with push x push connections, a brass body, and a brass seat. It is configured for one-direction flow control in potable water, hydronic heating/cooling, recirculation, and direct burial applications. The inline spring design supports horizontal or vertical mounting.

Key Features:

  • 3/4 in nominal valve size with 3/4 in connections on both sides
  • Push x push connection for joining compatible pipe or tube
  • Brass body and brass seat
  • Inline spring mechanism with single-flow design
  • Mounting orientation: horizontal or vertical
  • Maximum water pressure: 250 psi
  • Maximum operating pressure: 400 psi
  • Operating temperature range: 40 degrees F to 200 degrees F
  • NSF 61 certified
  • Overall length: 3.5 in
  • Standards: Meets multiple ANSI, ASSE, ASTM, CAN/ULC, CSA, and UL standards
