Shop SHARKBITE

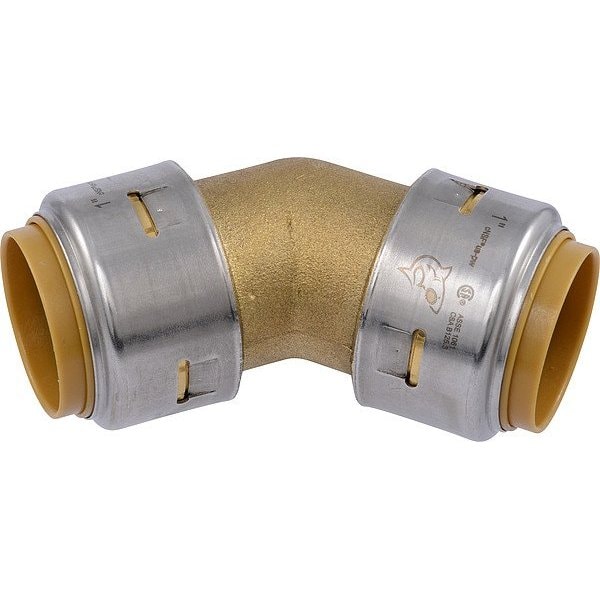

Elbow, Brass, Push-Fit1in, Push-Fit1in

  • Mfr # UR660

  • Zoro # G616277992

product price:
$
33.19
/ea

Key Features

Standards
ASSE 1061, ASTM E119, ASTM E84, CAN/ULC S102, CAN/ULC S102.2, CSA B125.3, NSF/ANSI 14, NSF/ANSI/CAN 372, UL 263
System of Measurement
Imperial
Fitting Material
Brass
Material Grade
316
Series
UR
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
UR660
Zoro #
G616277992
UPC #
697285076075
Country of Origin
Viet Nam

Dimensions

Fitting Side 2 Pipe Size
1 in
Fitting Side 1 Pipe Size
1 in
Compatible Copper Tube Size
1 in
Overall Length
3 1/2 in
Wire Rope Length
3 1/2 in
Length
3 1/2 in

Details

Item
Push-Fit Elbow Fitting
Standards
ASSE 1061, ASTM E119, ASTM E84, CAN/ULC S102, CAN/ULC S102.2, CSA B125.3, NSF/ANSI 14, NSF/ANSI/CAN 372, UL 263
System of Measurement
Imperial
Fitting Material
Brass
Material Grade
316
Series
UR
Release Type
Ring
Fitting Shape
45 Degrees Elbow
Fitting Side 1 Connection Type
Push-to-Connect
Operating Temperature - Maximum
200 Degrees F
Compatible Tube Material
Copper, CPVC, PE-RT, PEX, HDPE
Operating Pressure - Maximum
400 psi
For Media Type
Potable Water
Release Ring Material
EPDM
Fitting Side 2 Connection Type
Push-to-Connect
Operating Temperature - Minimum
32 Degrees F
Compatible Copper Tube Type
Type K, Type L, Type M
Connector Type
Coupling
Application
Climate Control
Fitting Features
Swivel
Color
Gray/Brass

Description

Push-Fit Elbow Fitting, Application Climate Control, Fitting Material Brass, Fitting Thread Size Not Applicable, Material Grade 316, Color Gray/Brass, Includes Pre-Applied Thread Sealant Not Applicable, Overall Length 3 1/2 in, Release Type Ring, Standards ASSE 1061, ASTM E119, ASTM E84, CAN/ULC S102, CAN/ULC S102.2, CSA B125.3, NSF/ANSI 14, NSF/ANSI/CAN 372, UL 263, Compatible Copper Tube Size 1 in, Compatible Copper Tube Type Type K, Type L, Type M

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
