Shop SHARKBITE

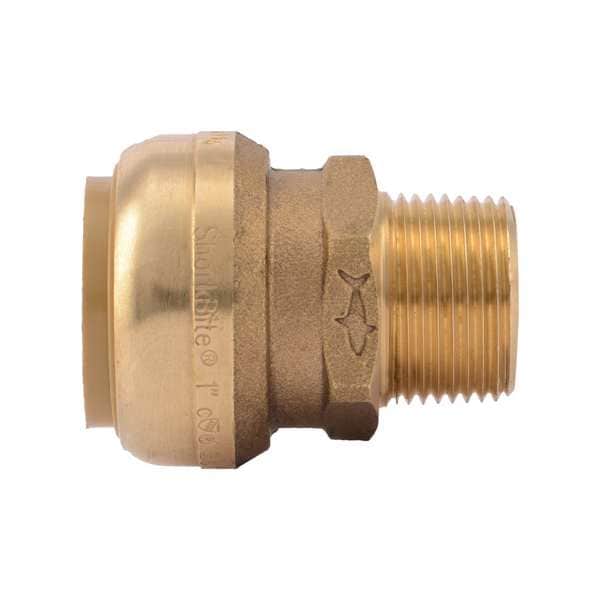

Male Reducing Adapter, 1 in Tube Size, Brass, Brass

  • Mfr # U142LF

  • Zoro # G4595595

product price:
$
12.45
/ea
Zoro's best price: not eligible for any other offers or promotions

Key Features

Tube Fitting Material
DZR Brass
Specific Fitting Shape
Straight Adapter
Fitting Connection Type
Push-Fit x MNPT
Tube Size
1 in
Pipe Size - Pipe Fitting
3/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
U142LF
Zoro #
G4595595
UPC #
697285465206
Country of Origin
Australia
Item
Male Reducing Adapter
Tube Fitting Material
DZR Brass
Specific Fitting Shape
Straight Adapter
Fitting Connection Type
Push-Fit x MNPT
Max. Pressure
200 psi
Special Features
Connects Copper, Pex and CPVC in any Combination without the Use of Soldering, Unions or Glue
Specific Pipe Fitting Shape
Reducing Adapter
Basic Pipe Fitting Shape
Adapter
Basic Pipe Fitting Material
Metal
Gasket Material
EPDM
Pipe Fitting Connection Type
Push-To-Connect
Standards
ASSE 1061/NSF 92, CPUC Listed, IAPMO, IGC 188, IPC, NSF/ANSI 61, UPC
Temp. Range
0 Degrees to 200 Degrees F
Application
Potable Water
System of Measurement
Imperial
Color
Brass
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Compatible Tube Material
Copper, CPVC, HDPE, PEX, Polyethylene
Resistance Properties
Corrosion-Resistant
Maximum Operating Temperature
200 Degrees F
Fitting Side A Connection Type
Push-to-Connect
Fitting Side B Connection Type
MNPT
Minimum Operating Temperature
0 Degrees F
Fitting Material
Brass
Maximum Operating Pressure
200 psi
Release Ring Material
EPDM
Fitting Shape
Straight
Operating Temperature - Minimum
0 Degrees F
Fitting Side 2 Connection Type
MNPT
Fitting Side 1 Connection Type
Push-to-Connect
Connector Type
Adapter, Reducer
Operating Temperature - Maximum
200 Degrees F
For Media Type
Potable Water
Operating Pressure - Maximum
200 psi

Description

Male Reducing Adapter, Application Potable Water, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type MNPT, Fitting Side B Pipe Size 3/4 in, Fitting Side A Tube Outer Diameter 1 in, Fitting Material Brass, Fitting Thread Size 3/4 In., Color Brass, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 2 1/8 in, Specific Fitting Shape Straight Adapter
