  11. Band Saw, 10" x 10" Rectangle, 8" Round, 7 in Square, 220V AC V, 5 hp HP

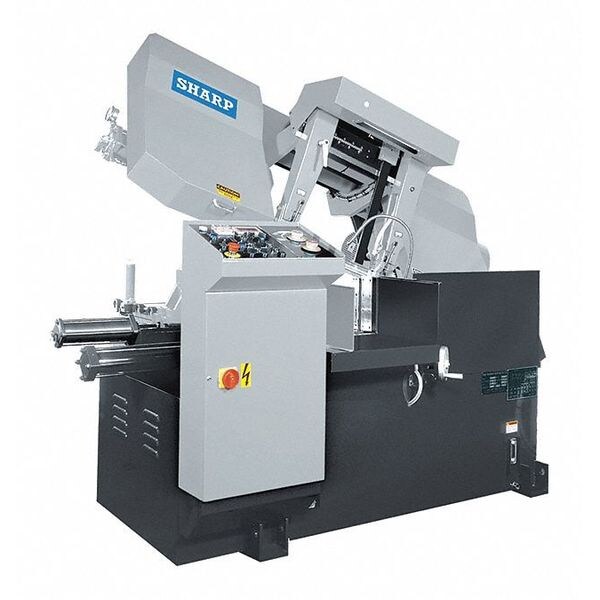

Sharp Band Saw, 10" x 10" Rectangle, 8" Round, 7 in Square, 220V AC V, 5 hp HP SW-120A - main

Band Saw, 10" x 10" Rectangle, 8" Round, 7 in Square, 220V AC V, 5 hp HP

  • Mfr # SW-120A

  • Zoro # G5091858

product price: $43,515.99
/ea
Item requires special delivery charges. A $415.00 per item surcharge will be applied.

Key Features

Cutting Capacity Rectangle
10" x 10"
Cutting Capacity Round
8"
Cutting Capacity Square
7 in
Voltage
220V AC
HP
5 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SW-120A
Zoro #
G5091858
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Max. Thickness of Cut
7"
Max. Blade Length
100 3/4 in
Blade Wheels Dia.
17 in
Blade Thickness
0.043 in
Table Dimensions
12 5/8 in x 13 13/32 in
Overall Width
74 1/2 in
Overall Depth
75 in
Min. Blade Length
150 13/32 in
Max. Blade Width
1 1/32 in
Min. Blade Width
1 1/32 in
Overall Height
67 in
Blade Length
11 ft 6 in

Details

Item
Band Saw
Cutting Capacity Rectangle
10" x 10"
Cutting Capacity Round
8"
Cutting Capacity Square
7 in
Voltage
220V AC
HP
5 hp
Speeds
66 to 328 fpm
Miter Capacity
0 Degrees
Corded/Cordless
Corded
Corded/Banded
Corded
Application
Metal Cutting
Cutting Angle
90 Degrees
Phase
3
Hz
60 Hz
RPM
380
Includes
Bi-Metal Saw Blade, Double Retracting Vise, Flushing Hose, Full Stroke Cylinder, Leveling Pad, Tool Box, Wire Brush, Work Light
Features
Auto Hydraulic Blade Tension, Bundle Cutting Via Adjustable Fence, Digital Display Cut Length, Easy Blade Changing Device, Hydraulic and Electric System, Hydraulic Front and Rear Vises, PLC Control, Precision Feed Rate and Feed Pressure, Split Vise Holds Work At Both Side of Blade, Variable Speed
Amps AC
17.0 A
Band Saw Type
Horizontal
Band Saw Operation
Automatic
SFPM Range
50 to 330 SFPM
Rectangular Cutting Capacity - Horizontal
13 in x 12 in
Round Cutting Capacity - Horizontal
12 in
Material Application
Metal
Number of Speed Settings
Continuous
Miter Angle Range
0 Degrees
Current
17.0 A
Power Source
Corded
Variable Speed
Yes

Description

Band Saw, Band Saw Type Horizontal, Band Saw Operation Automatic, Voltage 220V AC, Phase 3, Rectangular Cutting Capacity - Horizontal 13 in x 12 in, Round Cutting Capacity - Horizontal 12 in, SFPM Range 50 to 330 SFPM, Miter Angle Range 0 Degrees , Number of Speed Settings Continuous, Material Application Metal, Blade Length 11 ft 6 in, Max. Blade Width 1 1/32 in, Min. Blade Width 1 1/32 in, Cutting Capacity Square 7 in, Power Source Corded, Blade Thickness 0.043 in, Blade Wheels Dia. 17 in
