Shop DAYTON

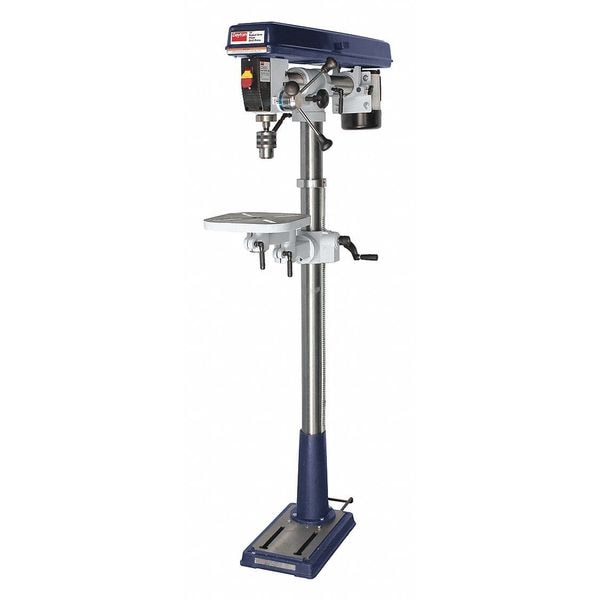

Radial Floor Drill Press, Belt Drive, 1/2 hp, 120V AC V, 33 in Swing, 5 Speed

  • Mfr # 40PM17

  • Zoro # G2096440

product price:  $1,110.99
/ea
Additional $175.00 delivery surcharge applies per item.
See details

Key Features

Drill Press Product Grouping
General Purpose Drill Presses
Drive Type
Belt
Swing
33 in
Voltage
120V AC
Motor HP
1/2 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
40PM17
Zoro #
G2096440
UPC #
190735297896
Country of Origin
China

Dimensions

Chuck Size
5/8 in
Overall Depth
33 in
Quill Dia.
1 55/64 in
Base Size
14 in x 23-1/2 in
Overall Height
65 in
Table Slot Size
1/2 in
Column Dia.
2 3/4 in
Overall Width
14 in
Table Width
12 in
Base Length
21 in
Column Diameter
2 3/4 in
Table Length
10 3/8 in
Base Height
14 in
Maximum Overall Height
65 in
Radial Arm Length
33 in
Maximum Spindle-to-Table Height
51 1/2 in
Quill Diameter
1 55/64 in
Maximum Spindle-to-Base Height
50 in

Details

Drill Press Product Grouping
General Purpose Drill Presses
Item
Radial Floor Drill Press
Drive Type
Belt
Swing
33 in
Voltage
120V AC
Motor HP
1/2 hp
Number of Speeds
5
Capacity Steel
3/8 in
Spindle Speed
550 to 3300 rpm
Phase
Single-Phase
Spindle Taper
JT3
Includes
Arbor, Base Extension, Chuck and Key
Corded/Banded
Corded
Capacity Cast Iron
5/8 in
Spindle Travel
3 5/32 in
Power Down Feed Included
No
Amps AC
7 A
Table Work Surface
10-3/8 in x 10-3/8 in
Hz
60
Max. Spindle To Base
50 in
Number of T-Slots
0
Corded/Cordless
Corded
Drilling Capacity Wood
Not Specified
Tilting Angle
45 Degrees
Spindle to Table
30 in
Application
General Purpose Drill Press
Speed Range
550 to 3,300 RPM
Table Slot
Yes
Spindle-to-Column Distance
5 1/2 in to 16 1/2 in
Current
5.0 A
Radial Arm
Yes
Chuck Style
Keyed
Drilling Capacity in Steel
3/8 in
Table Tilt
45 Degrees
Speed Adjustment
Step Pulley
Drill Press Type
Floor Stand
Horsepower
1/2 hp
Drill Press Application
Countersinking, Drilling, Reaming
Primary Material Application
Metal, Wood
Number of Spindle Speeds
5
Power Source
Corded
Table Shape
Square
Guard Included
No
Maximum Spindle Speed
3,100 RPM
Chuck Capacity
5/8 in
Minimum Spindle Speed
600 RPM
Speed Control
Fixed
Coolant System
No
Number of Pieces
4

Description

Radial Floor Drill Press, Primary Material Application Metal, Wood, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Countersinking, Drilling, Reaming, Speed Control Fixed, Speed Adjustment Step Pulley, Swing 33 in, Spindle-to-Column Distance 5 1/2 in to 16 1/2 in, Horsepower 1/2 hp, Voltage 120V AC, Spindle Taper JT3, Number of Speeds 5, Chuck Size 5/8 in, Chuck Style Keyed, Guard Included No, Coolant System No, Quill Diameter 1 55/64 in
