  11. Band Saw, 9-3/4" x 11" Rectangle, 9-3/4" Round, 7 in Square, 220V AC V, 5 hp HP

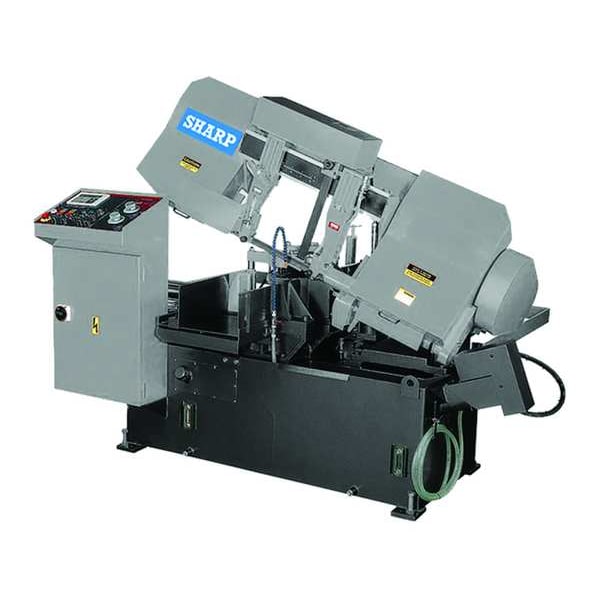

Sharp Band Saw, 9-3/4" x 11" Rectangle, 9-3/4" Round, 7 in Square, 220V AC V, 5 hp HP SW-100NC - main

Band Saw, 9-3/4" x 11" Rectangle, 9-3/4" Round, 7 in Square, 220V AC V, 5 hp HP

  • Mfr # SW-100NC

  • Zoro # G5091830

product price: $48,260.99
/ea
Item requires special delivery charges. A $415.00 per item surcharge will be applied.

Key Features

Cutting Capacity Rectangle
9-3/4" x 11"
Cutting Capacity Round
9-3/4"
Cutting Capacity Square
7 in
Voltage
220V AC
HP
5 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SW-100NC
Zoro #
G5091830
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Max. Thickness of Cut
7"
Max. Blade Length
138 in
Max. Blade Width
1 5/16 in
Overall Depth
85 in
Overall Width
77 in
Blade Wheels Dia.
16 in
Overall Height
60 in
Blade Length
11 ft 6 in

Details

Item
Band Saw
Cutting Capacity Rectangle
9-3/4" x 11"
Cutting Capacity Round
9-3/4"
Cutting Capacity Square
7 in
Voltage
220V AC
HP
5 hp
Speeds
66 to 328 fpm
Miter Capacity
0 Degrees
Corded/Cordless
Corded
Cutting Angle
90 Degrees
Amps AC
17.0 A
Phase
3
RPM
3250/2800
Includes
Bi-Metal Saw Blade, Double Retracting Vise, Flushing Hose, Full Stroke Cylinder, Leveling Pad, Tool Box, Wire Brush, Work Light
Application
Metal Cutting
Corded/Banded
Corded
Features
Auto Kerf Loss Compensation, Auto Shut Down, Display Blade Speed, Feed Pressure, Feed Rate Selection, Feed Vise Position, Material Length, Programmable Touch Screen Control of Input Quantity, Work Height
Hz
60 Hz
Band Saw Type
Horizontal
Round Cutting Capacity - Horizontal
10 1/4 in
SFPM Range
66 to 328 SFPM
Miter Angle Range
0 Degrees
Band Saw Operation
Semi-Automatic
Material Application
Metal
Rectangular Cutting Capacity - Horizontal
10 3/16 in x 11 13/16 in
Number of Speed Settings
Continuous
Current
17.0 A
Power Source
Corded
Variable Speed
Yes

Description

Band Saw, Band Saw Type Horizontal, Band Saw Operation Semi-Automatic, Voltage 220V AC, Phase 3, Rectangular Cutting Capacity - Horizontal 10 3/16 in x 11 13/16 in, Round Cutting Capacity - Horizontal 10 1/4 in, SFPM Range 66 to 328 SFPM, Miter Angle Range 0 Degrees , Number of Speed Settings Continuous, Material Application Metal, Blade Length 11 ft 6 in, Max. Blade Width 1 5/16 in, Cutting Capacity Square 7 in, Power Source Corded, Blade Wheels Dia. 16 in, Amps AC 17.0 A, Hz 60 Hz, HP 5 hp
